Smart arm design

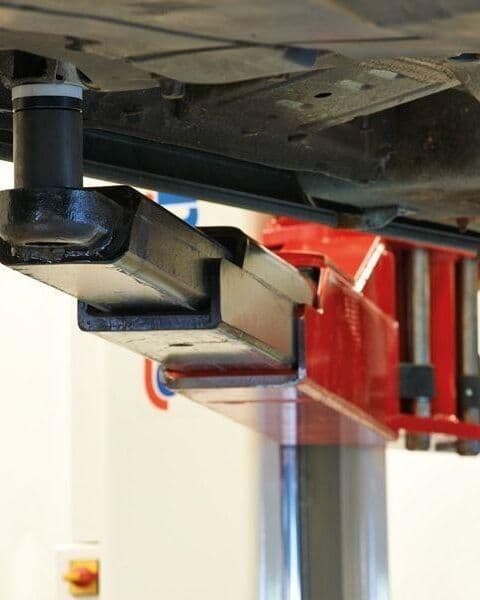

Single, double, and Extended Flex Arms (EFA). The EFA model has double telescopic arms and hinged elbow joints, for more extensive reach.
Lifting with maximum workshop freedom

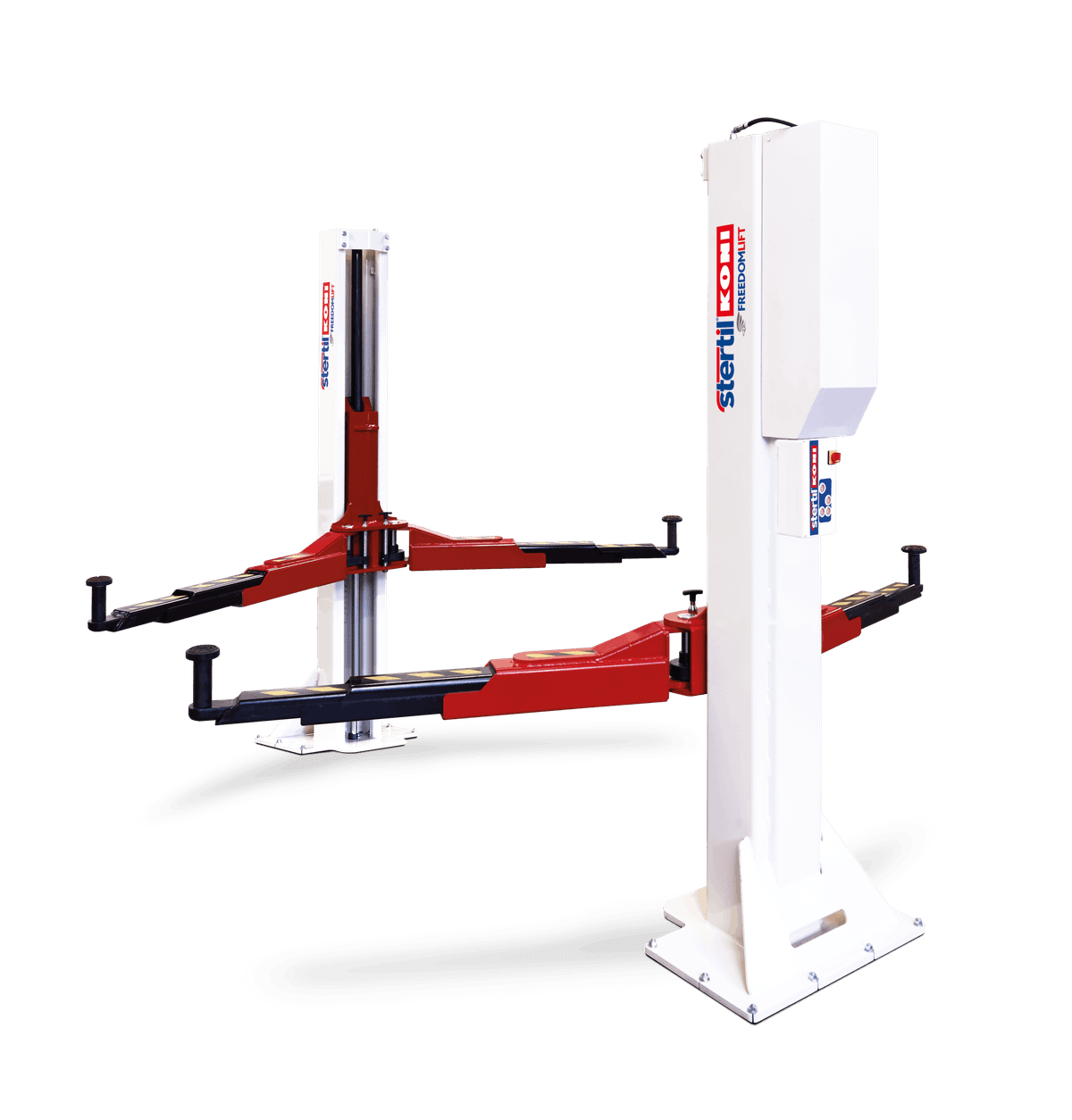

2-Post FREEDOMLIFT®
Overview
Providing full access and flexibility. Slim, strong arms and compact footplates ensure safe lifting and free movement in your workshop.
Lifting capacities 5500 kg, 7000 kg, and 9000 kg

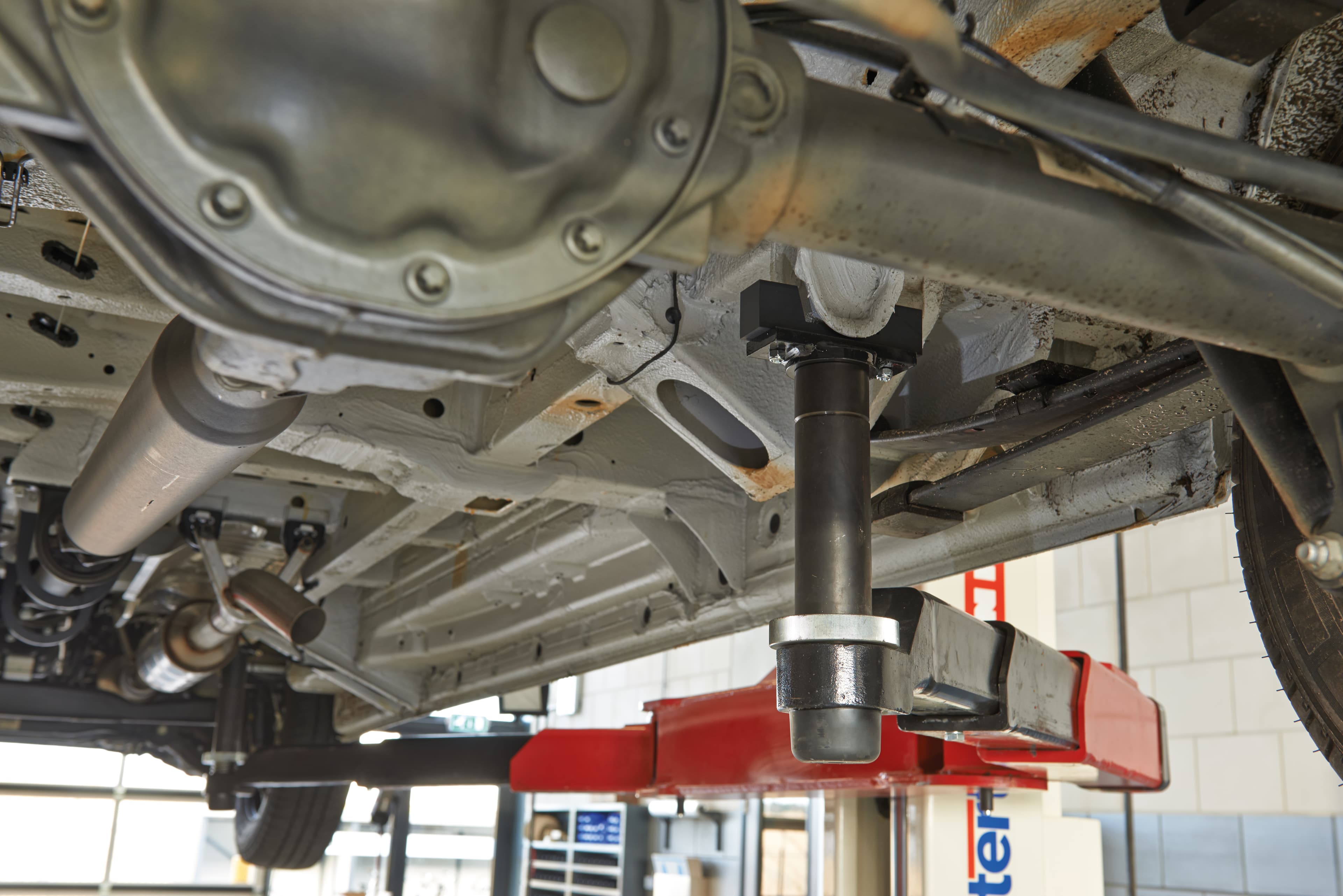

Adjustable telescopic arms
Compact footplates
Optimal load distribution
Quick installation

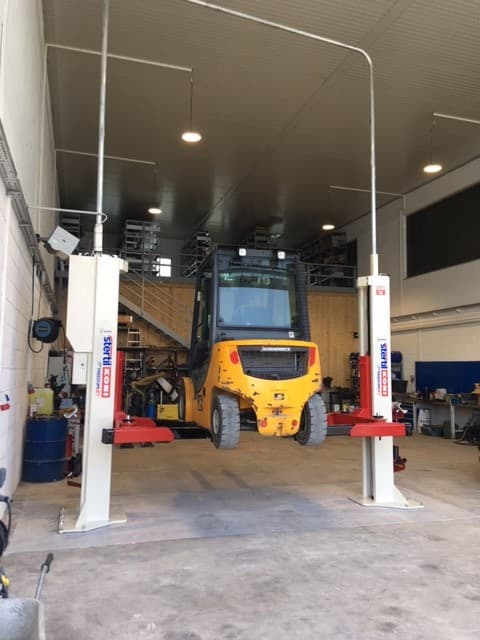

Efficiently designed 2-post FREEDOMLIFT with a baseless construction, and rigid top-beamfree. For lifting a wide variety of vehicles, from commercial vans to small heavy duty trucks.
Applications
Applications
3 models with lifiting capacities up to 9,000 kg

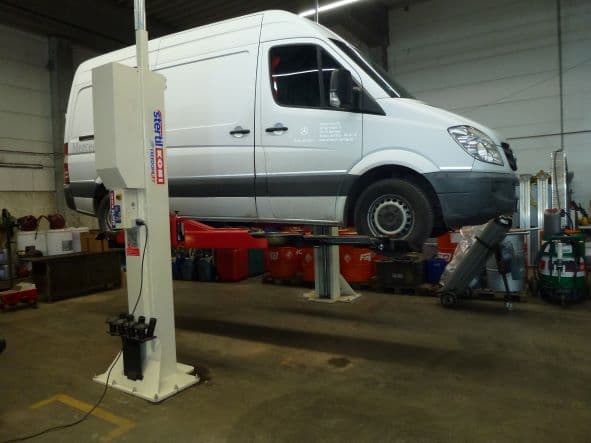

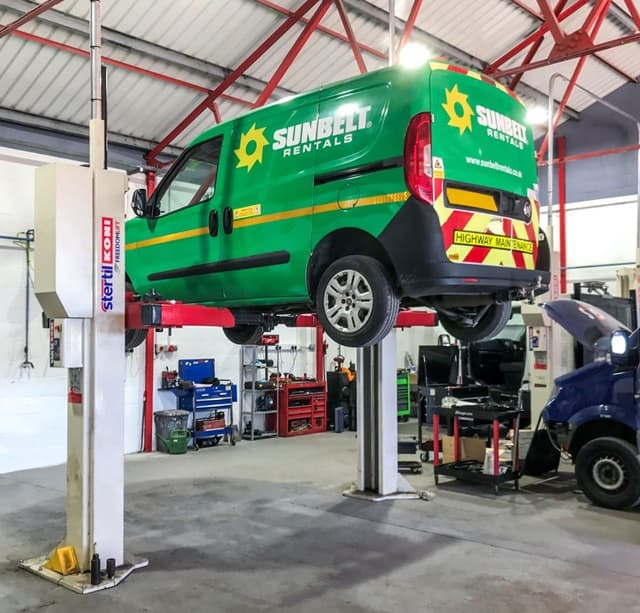

Wide variety of vehicles, even LWB vans
Effective in workshops with low ceilings

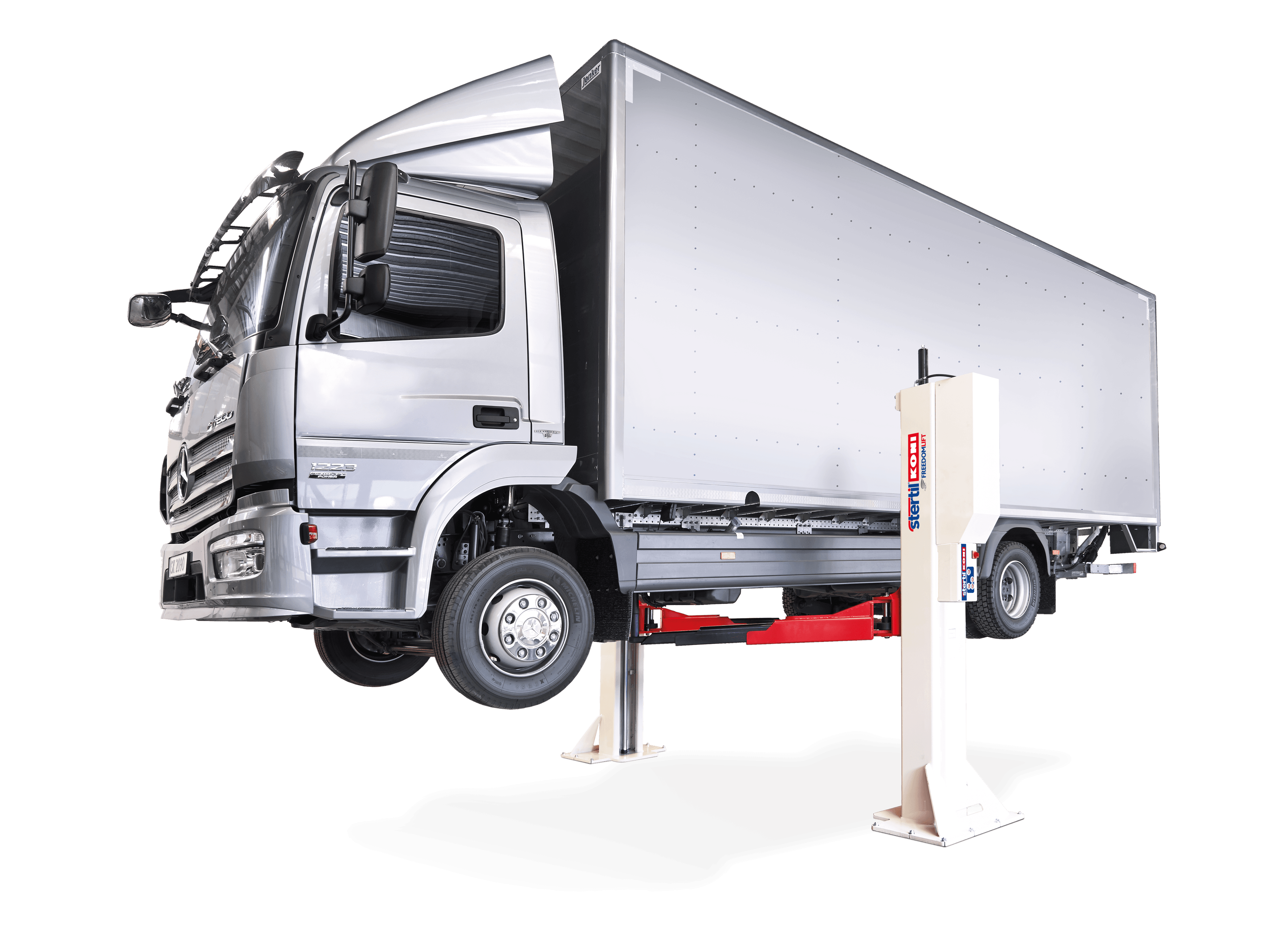

Electro-hydraulic 2-post lift with slim and strong construction.
9,000
kg
Max. lifting capacity
2,045
mm
Lifting height
130
mm
Min. pick-up height
Product features
Product features

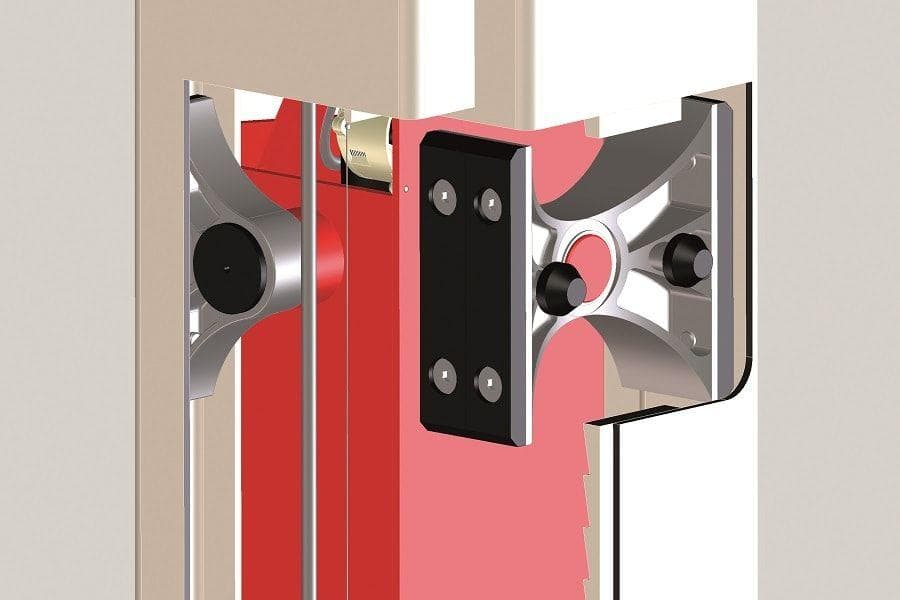

Sliding block system
Optimally distributes the load throughout the 2-post construction. Tested under maximum load with more than 20,000 lifting cycles.

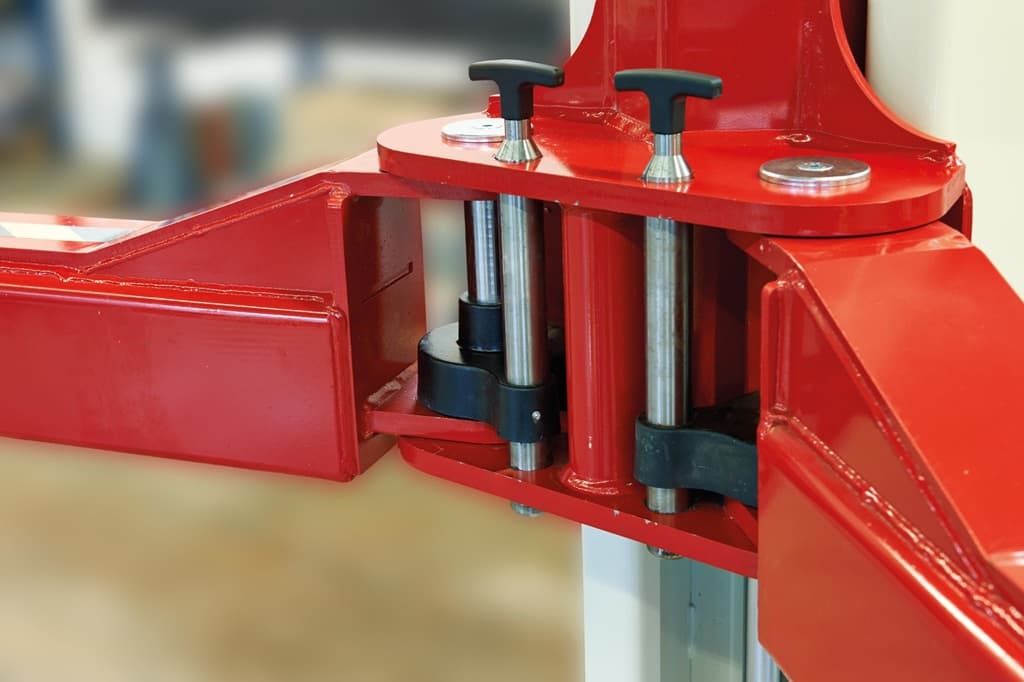

Automatic arm locking
Ensuring the lifting arms cannot shift once the vehicle is raised. This system activates automatically during lifting and provides safe, stable support throughout the operation.
Optional features
Optional features

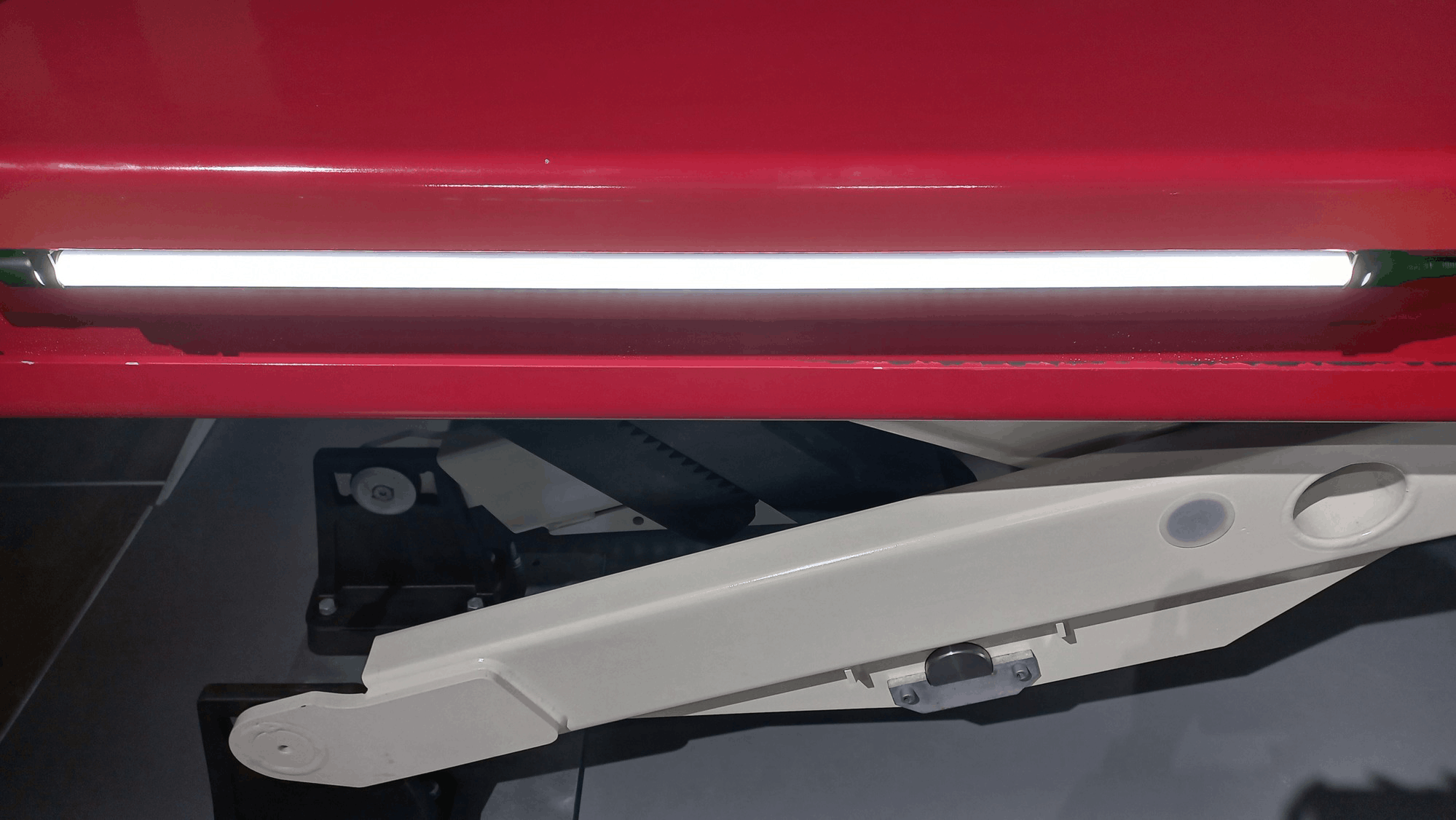

LED lighting
Better visibility with two energy-efficient tubes per column.

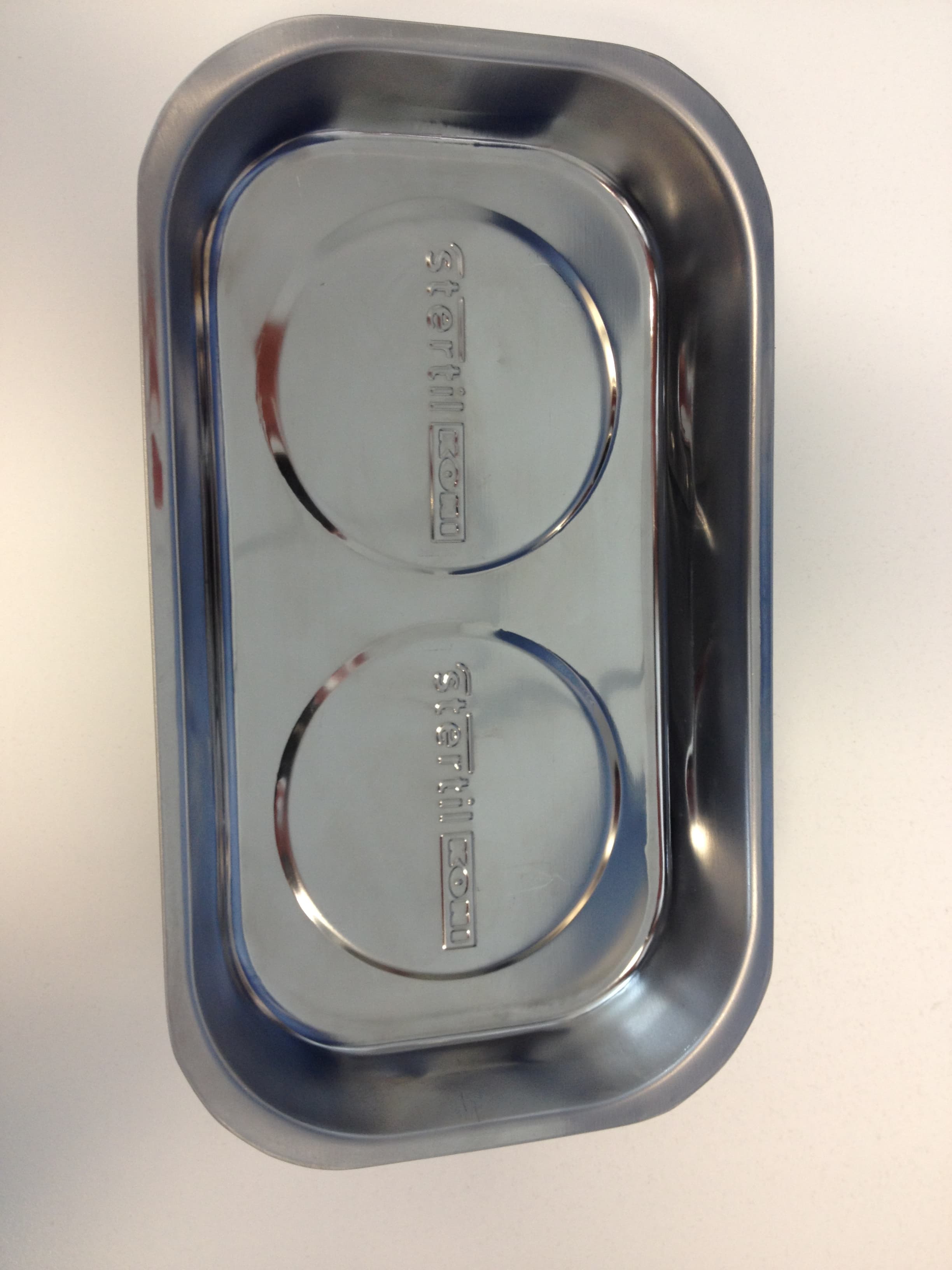

Magnetic tool tray
Attaches securely to lift arms. Keeping a variety of adapters at hand.

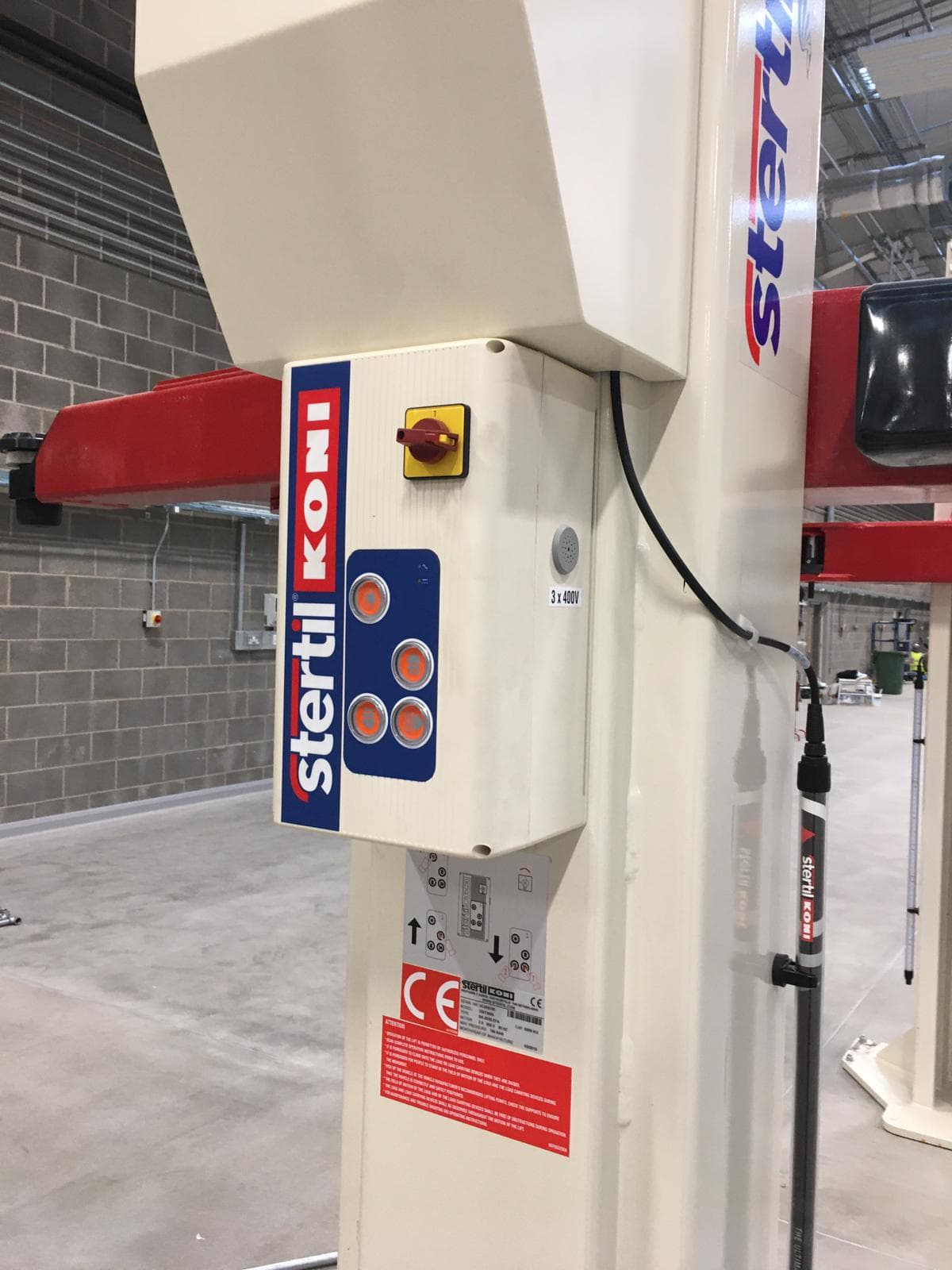

Second control box
Allows convenient operation of the lift at both posts.
Underfloor connection kit
Enables concealed cabling between columns.
Customer Story

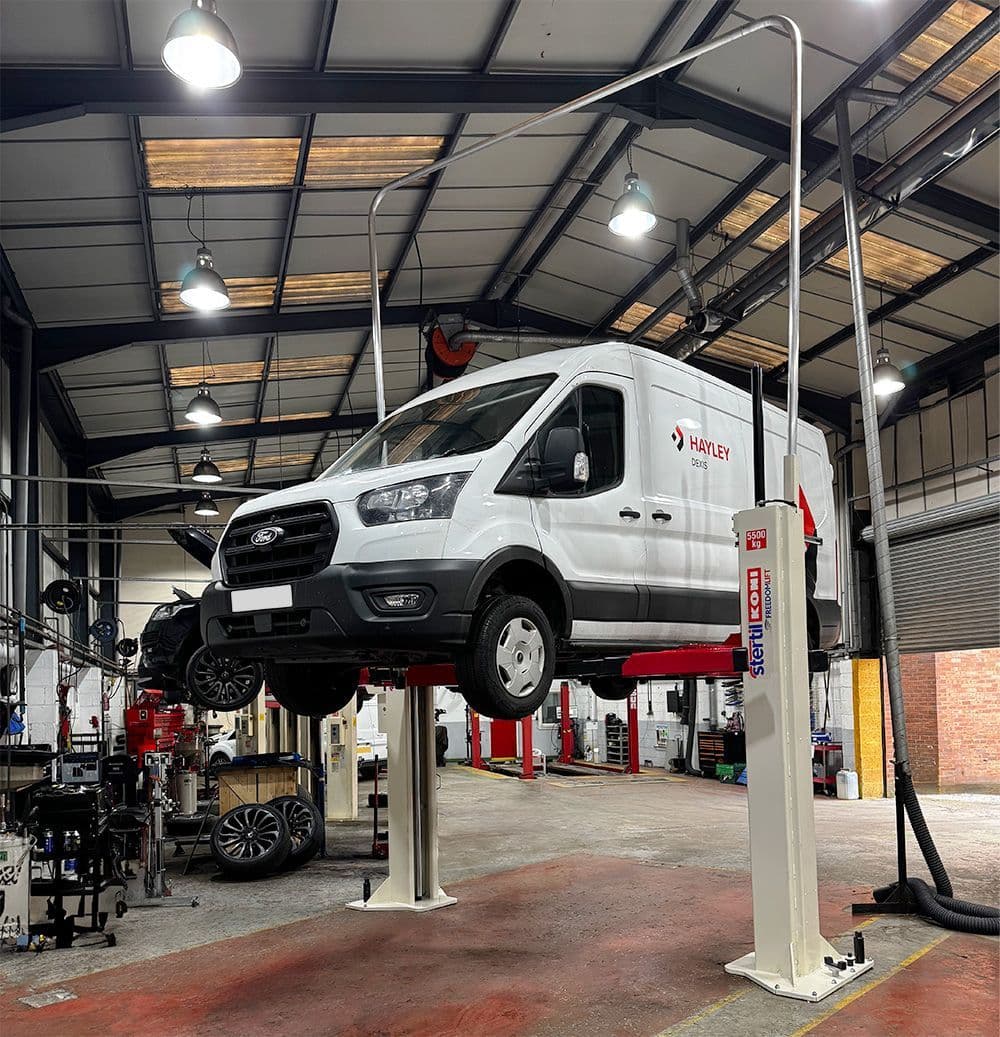

"We have been seriously impressed with the Stertil-Koni hydraulic lifts, they just never let you down. The concept of the FREEDOMLIFT is ingenious with telescopic support arms allowing us unhindered access to the raised vehicle."
Specifications
Specifications
SK 2055EFA
Lifting capacity
5500 kg
Lifting height
2045 mm
Pick-up height
145 mm
Min. Single telescopic arm
-
Max. Single telescopic arm
-
Min. Double telescopic arm
495 mm
Max. Double telescopic arm
1430 mm
Lifting time
39 sec
SK 2055
Lifting capacity
5500 kg
Lifting height
2040 mm
Pick-up height
140 mm
Min. Single telescopic arm
-
Max. Single telescopic arm
-
Min. Double telescopic arm
900 mm
Max. Double telescopic arm
1835 mm
Lifting time
39 sec
SK 2070
Lifting capacity
7000 kg
Lifting height
1980 - 1995 mm
Pick-up height
130 - 145 mm
Min. Single telescopic arm
970 mm
Max. Single telescopic arm
1610 mm
Min. Double telescopic arm
900 mm
Max. Double telescopic arm
1940 mm
Lifting time
58 sec
SK 2090
Lifting capacity
9000 kg
Lifting height
1980 - 1995 mm
Pick-up height
130 - 145 mm
Min. Single telescopic arm
970mm
Max. Single telescopic arm
1610 mm
Min. Double telescopic arm
900 mm
Max. Double telescopic arm
1940 mm
Lifting time
58 sec
Safety Features
Safety Features
The Freedomlift has various automatic safety features, ensuring maximum reliability. This 2-Post Lift is CE (Europe), UKCA (UK), ANSI/ALI-ALCTV (USA), and CSA (Canada) certified.
Independent mechanical locking system
Locking pawl engaged by gravity
Locking system is always active
Advanced synchronisation between the posts
Automatic overload protection
