Easy drive-on and drive-off
Ideal for articulated buses and other vehicles with low clearance, including electric buses and trucks. Lifting capacity from 20,000 - 70,000 kg.

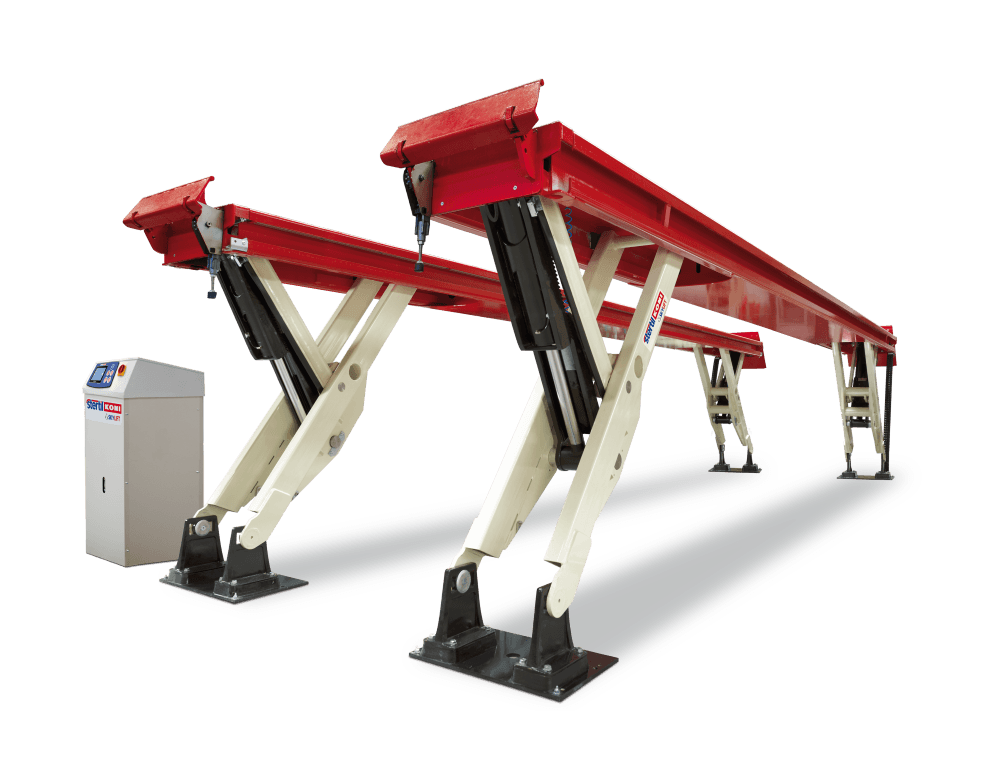

Platform lift for heavy duty vehicles
SKYLIFT®
Overview
A combination of extreme lifting power with full vehicle access.
Ideal for long, heavy duty vehicles — also suitable for tracked vehicles.
Free access from all sides
Reverse roll-off protection
Galvanised wash-bay model available
Flush with the floor, easy drive-on platforms
+10.000 installations worldwide
For heavy duty depots and mixed fleet workshops, where uptime and access are key. You can lift the longest vehicles — installation both indoors and outdoors.
Applications
Applications
Municipal and refuse vehicles
Low clearance buses

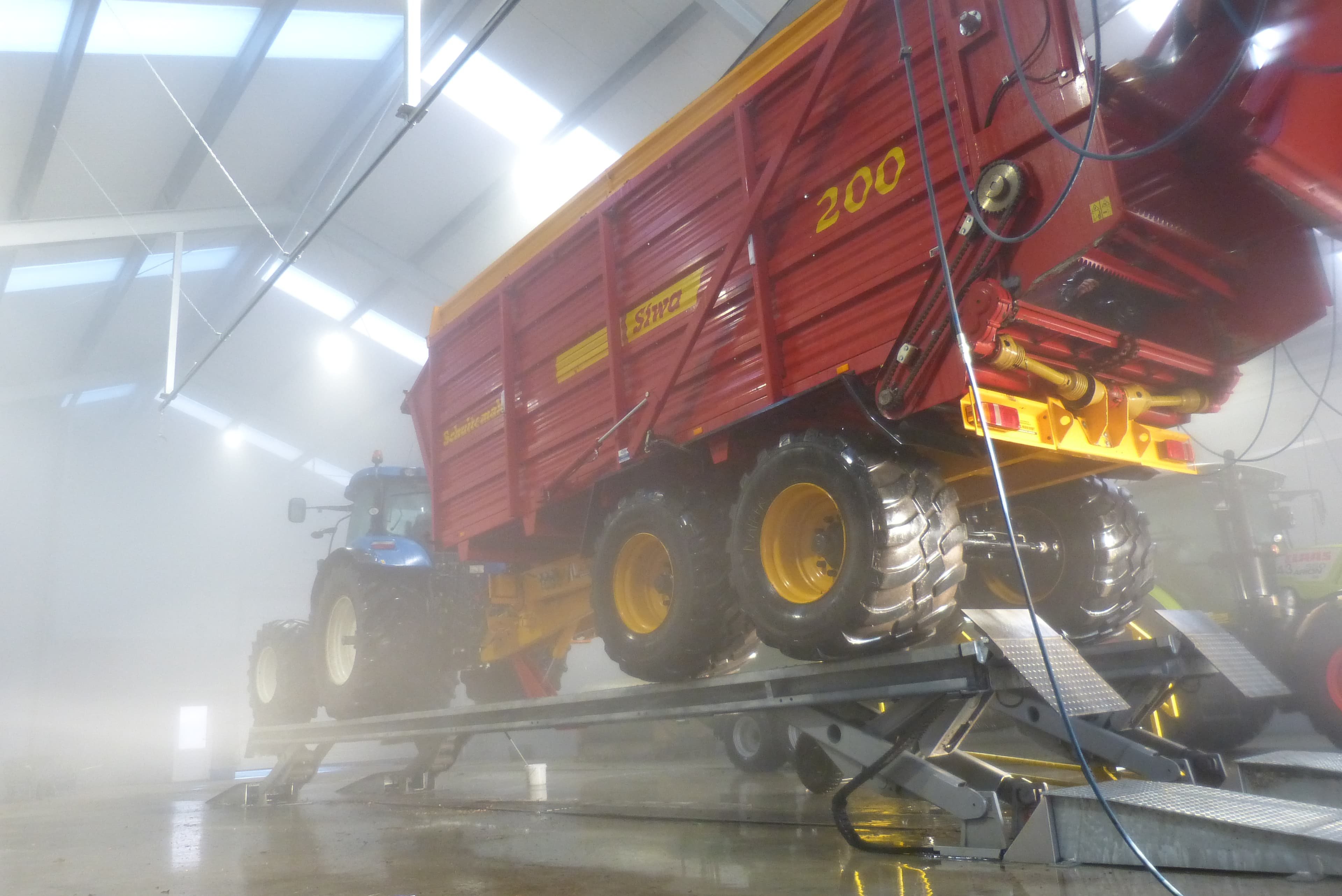

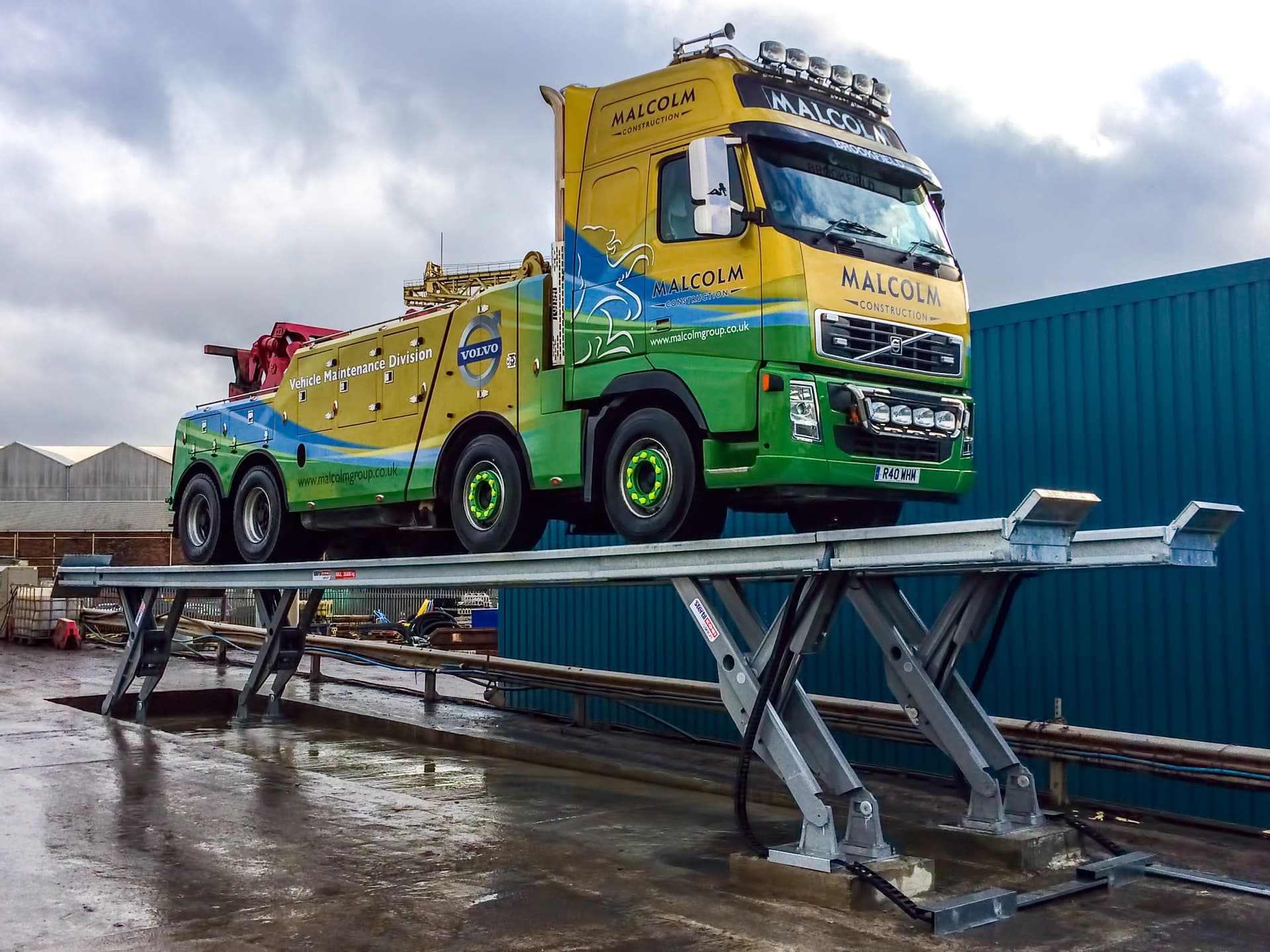

Industrial wash-bays
Heavy duty trucks
Tracked vehicles and equipment
Tandem configurations
Stertil-Koni heavy duty platform lift, ideal for servicing low clearance and articulated vehicles
35,000
kg
Max. lifting capacity
1,750
mm
Lifting height
90
sec
Lifting time
Product Features
Product Features
Clear floor, vertical lifting
No base frame or crossbeams. Work unhindered under the vehicle, even when using a tool cart trolley or positioning equipment such as axle stands.
Installation options
Choose surface mounted or flush mounted, available in various platform lengths.
Durable wash-bay
For use in a steam-cleaning bay. All-weather galvanised model with stainless steel control box.
Optional Features
Optional Features
Recess cover plates
Automatic recess cover plate system for flush mounted models for increased working safety. Durable, long lifespan.
Reverse roll-off protection
Added safety feature prevents vehicles from rolling-off the platforms. Flush with the floor when lift is not in use.

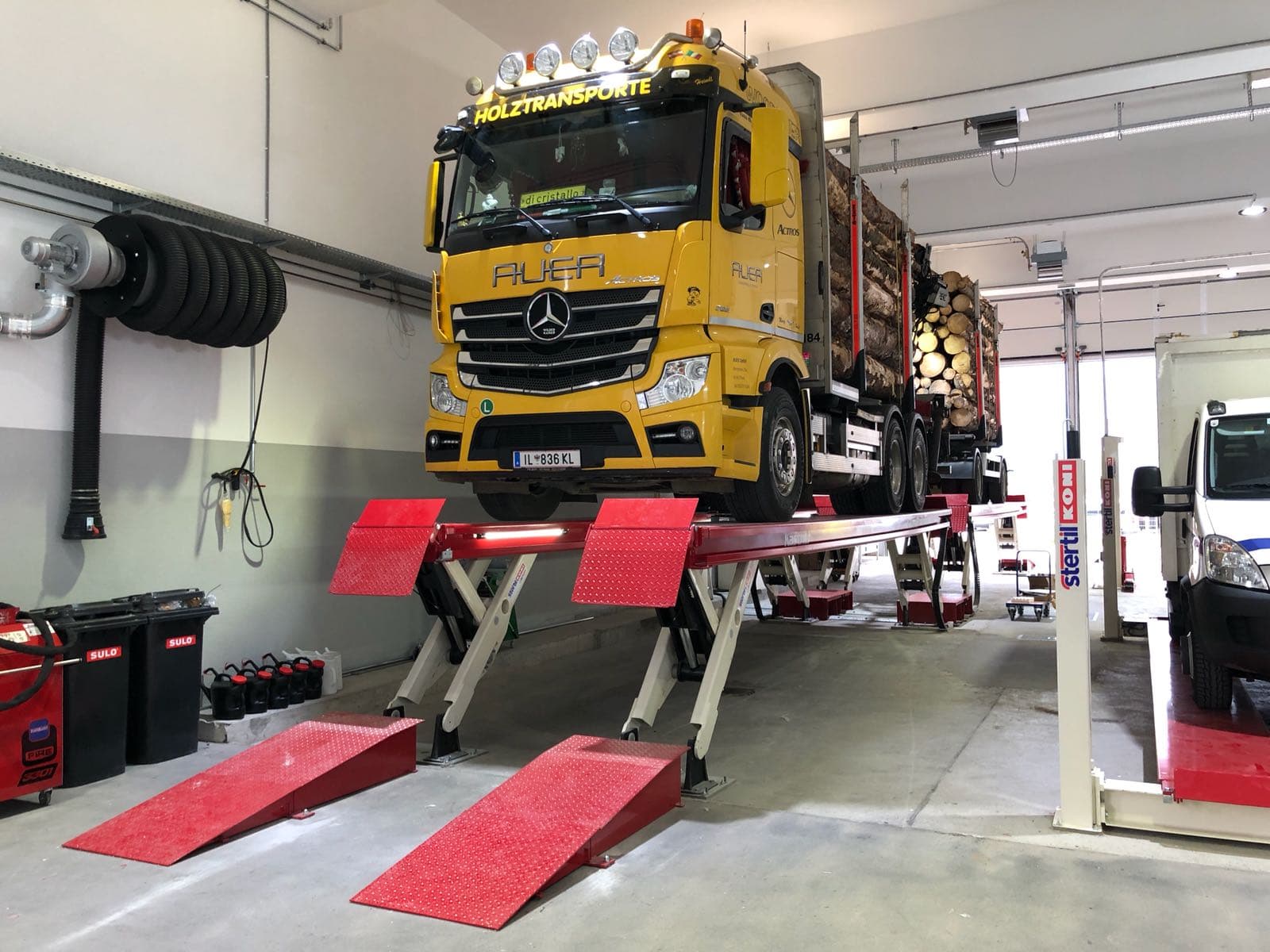

Synchronisation kit for tandem
A special synchronisation set and a bridging-piece between two lifts, to create a tandem configuration of two individual lifts. Extra flexibility for very long vehicles.

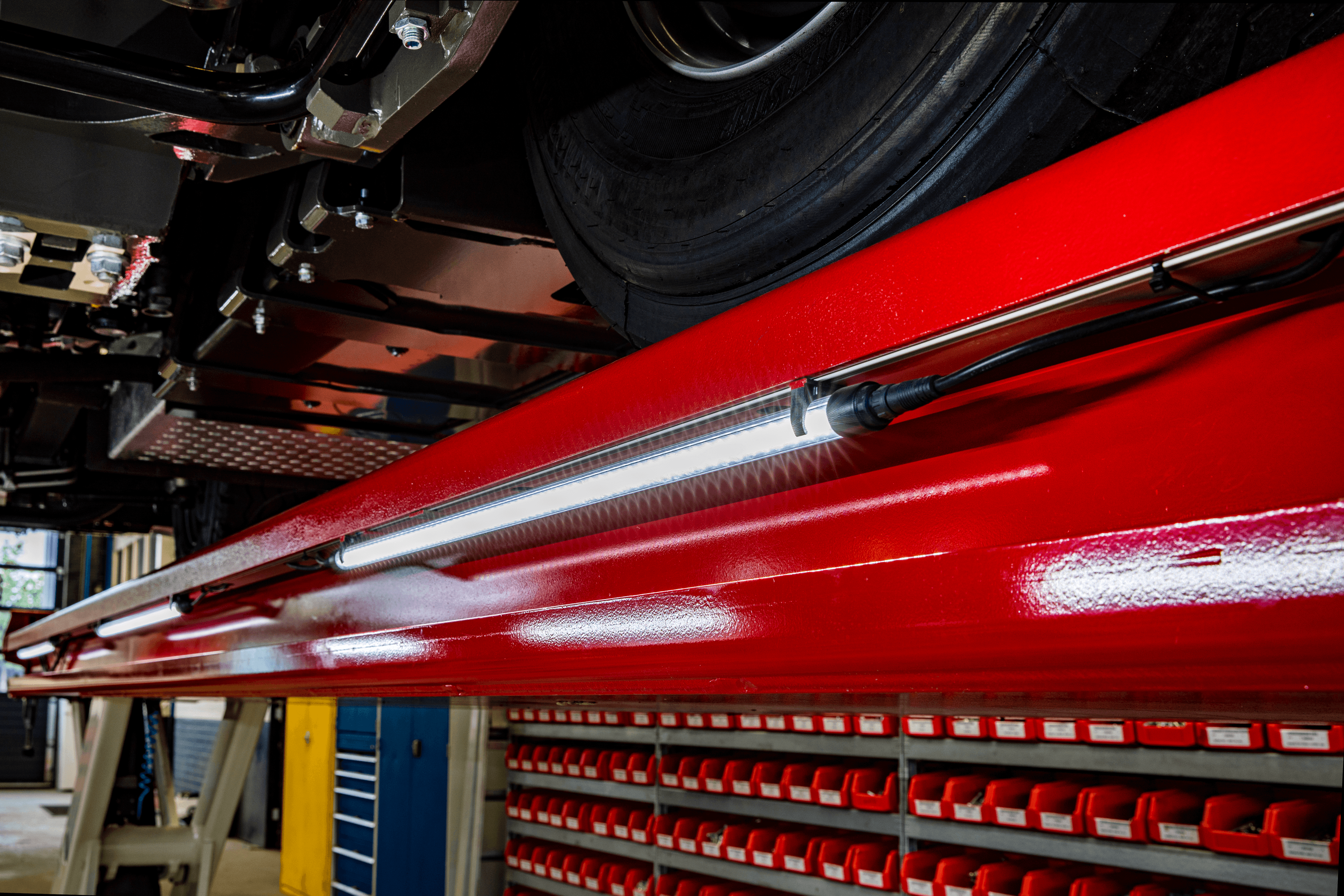

Add visibility and safety
LED lighting for improved working visibility.

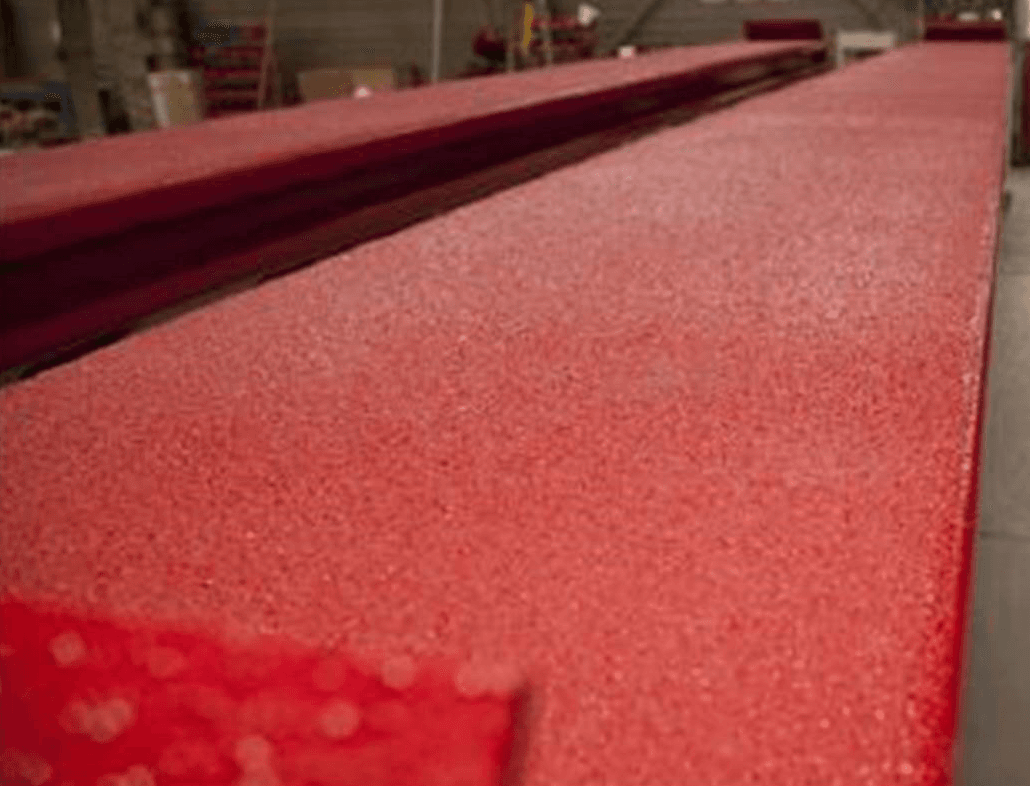

Anti-skid Coating
Prevent tyre skidding or slipping on the platforms.
Modular drive-on ramps
Additional multi-purpose drive-on approach ramps, making the platform SKYLIFT suitable for a wide range of vehicles.

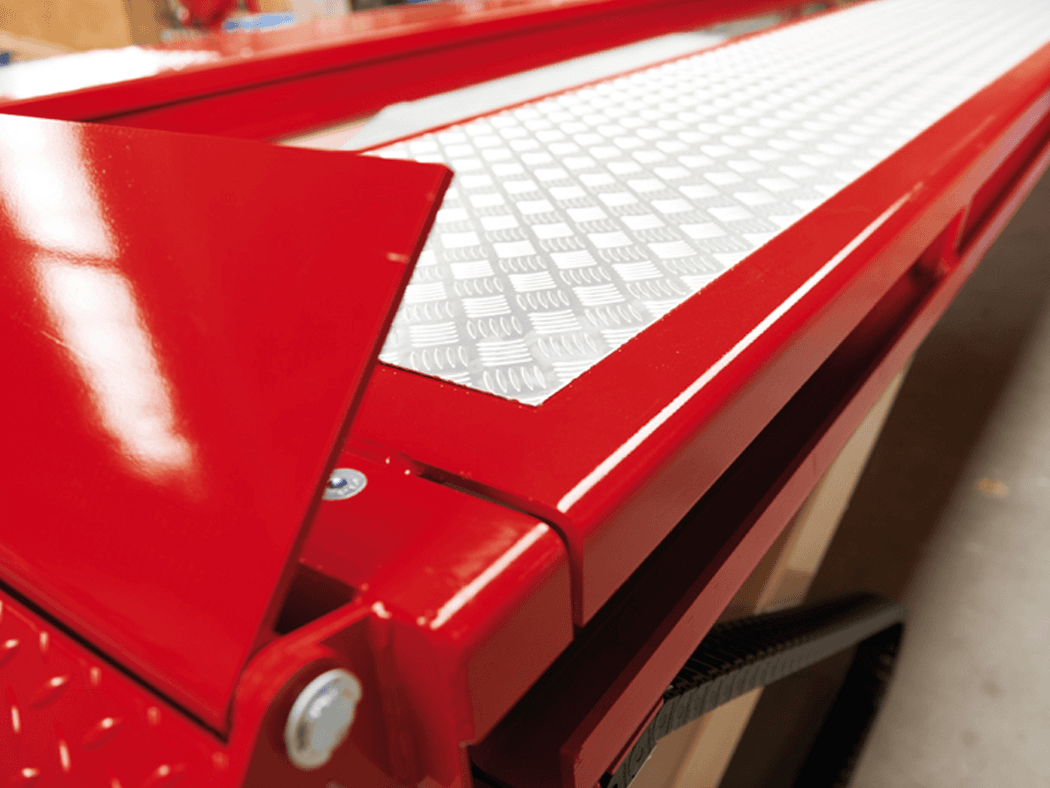

Anti-skid plates
Exist of aluminium diamond plates which can be easily retrofitted.
Specifications
Specifications
SKY.200
Lifting system
Hydraulic
Lifting capacity
20,000 kg
Lifting height
1750 mm
Lifting time
90 sec
Available platform lengths
7-8-9-10-12-14.5 metres
Motor capacity
9 kW
SKY.250
Lifting system
Hydraulic
Lifting capacity
25,000 kg
Lifting height
1750 mm
Lifting time
90 sec
Available platform lengths
7-8-9-10-12-14.5 metres
Motor capacity
9 kW
SKY.350
Lifting system
Hydraulic
Lifting capacity
35,000 kg
Lifting height
1750 mm
Lifting time
90 sec
Available platform lengths
8-9-10-12-14.5 metres
Motor capacity
9 kW
Safety Features
Safety Features
Cycle tested 20,000 times with maximum load. The Stertil-Koni Skylift platform vehicle lift meets the highest safety standards, and is CE (Europe), UKCA (UK), ANSI/ALI-ALCTV (USA), and CSA (Canada) certified.
Independent mechanical locking
Automatic overload protection
Control box houses power and operation unit
Low voltage control box
Advanced synchronisation system
Trusted by industry standards worldwide
