Low drive-on height
Ensuring vehicles with low ground clearance can be driven onto them without the risk of damaging the undercarriage.
Lifts for vans and light commercial vehicles
Compact 4-Post Lifts
Overview
4-Post platform lift, extremely low drive-on height. Specifically for long commercial vehicles and long-wheelbase vans.
Ideal for MOT inspection & wheel alignment
Low drive-on height
Space saving design
Light commercial long-wheelbase (LWB) vehicles
Ideal for workshops servicing vans, campers and vehicles with low clearance. The compact 4-post lift requires only limited workshop space.
Applications
Applications

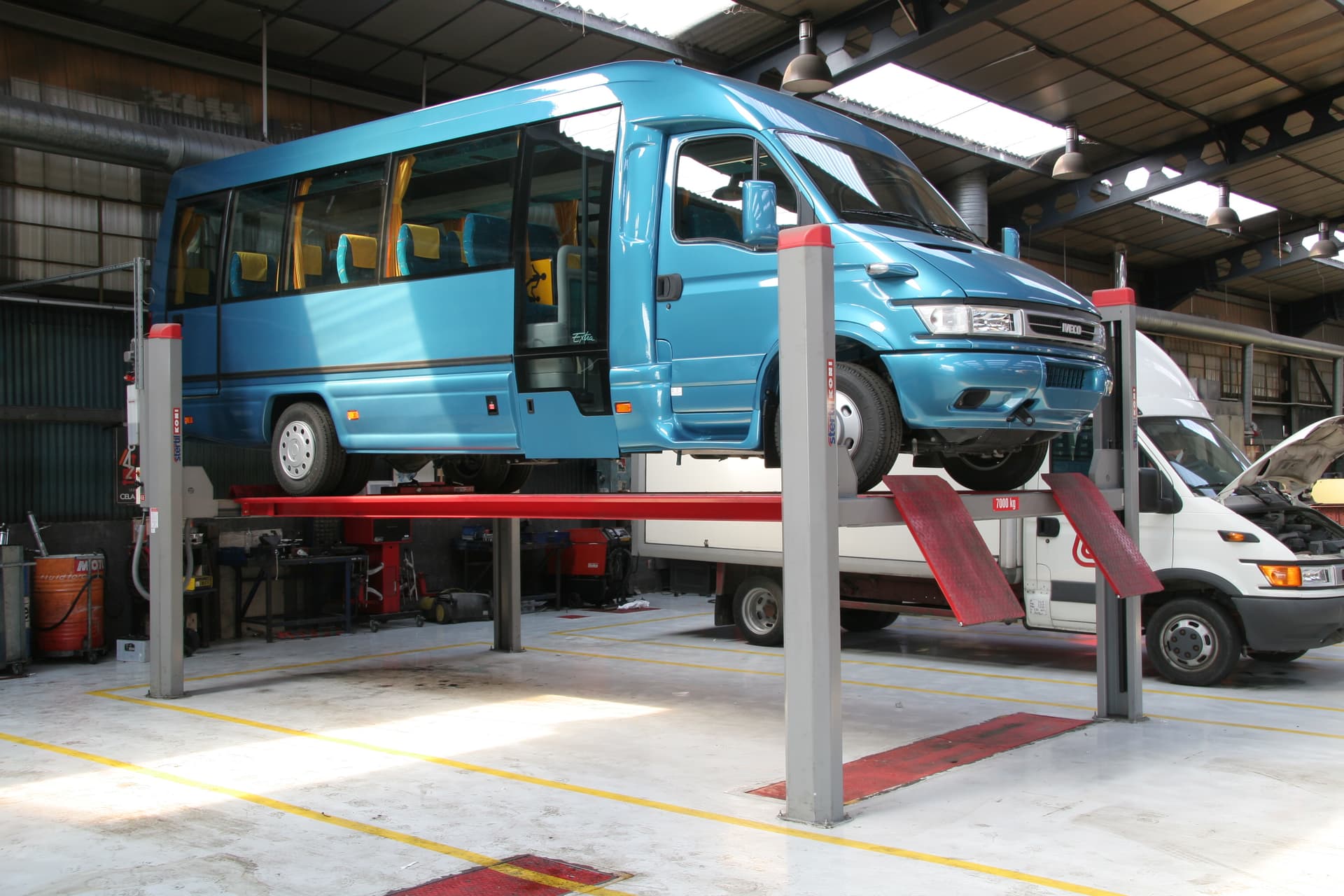

Minibus
Light duty trucks

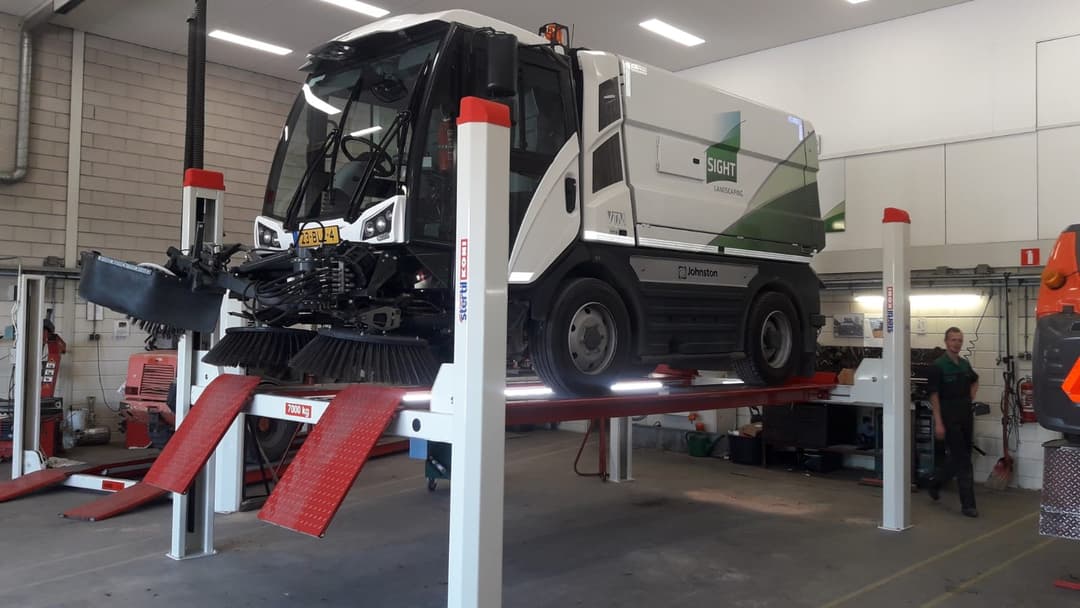

Municipal service vehicles
Lifting capacities of 5,500 kg and 7,000 kg
Wheel Alignment (WA) models available
Wide adjustable platforms
7,000
kg
Max. lifting capacity
2,000
mm
Lifting height
160
mm
Drive-on height
Product Features
Product Features
630 mm wide platforms
One adjustable platform for narrower axle widths. Ideal for commercial vans and light freight vehicles with twin-wheels.
Manually controlled descent
Maximum working height 2 metres. The rate of descent can be manually controlled for safe use with lifting accessories.
Wheel Alignment
WA-models fitted with slip plates, turn table recess and recess covers for precise and efficient wheel alignment.
Optional Features
Optional Features
Short approach ramps
Designed for recessed installation.
Custom platform lengths
A wide variety of lengths suited to your vehicle fleet.
Custom RAL colours
Aligns lift appearance with the company's branding.
Third platform
Allows lifting of 3-wheeled forklift trucks.
LED Lighting
Set of 4 or 6 LED Lights.

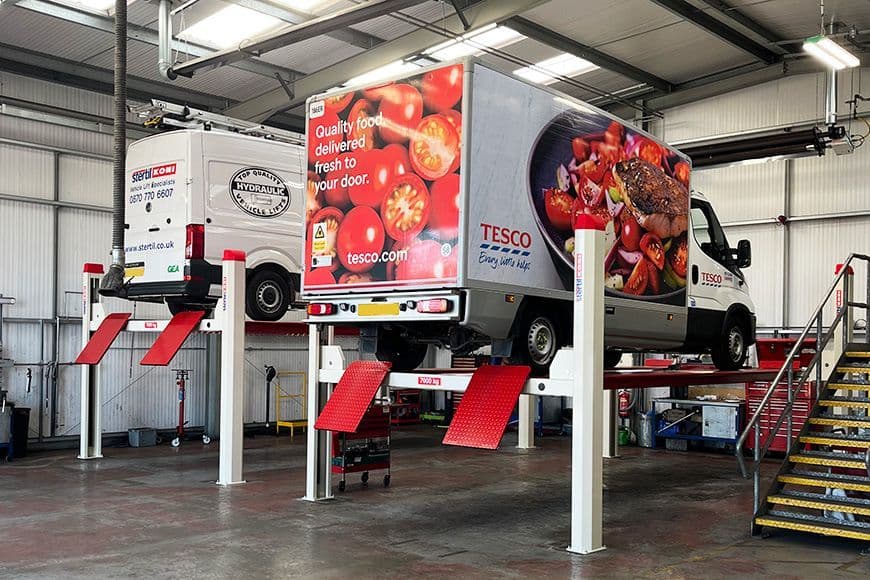

Customer Story
The purchase of two 4-post lifts ST 4070 follows Sentinel's recent takeover of the VMU, with the aim of streamlining servicing operations and improving working conditions for technicians.
Safety & maintenance
Safety Features
The ST 4055 and ST 4070 4-post lifts are CE certified, and have a low-voltage control box.
Automatic protection against overloading
Independent mechanical locking system
Automatic stop when highest position is reached
Dead-Man's switch
Trusted by industry standards worldwide
