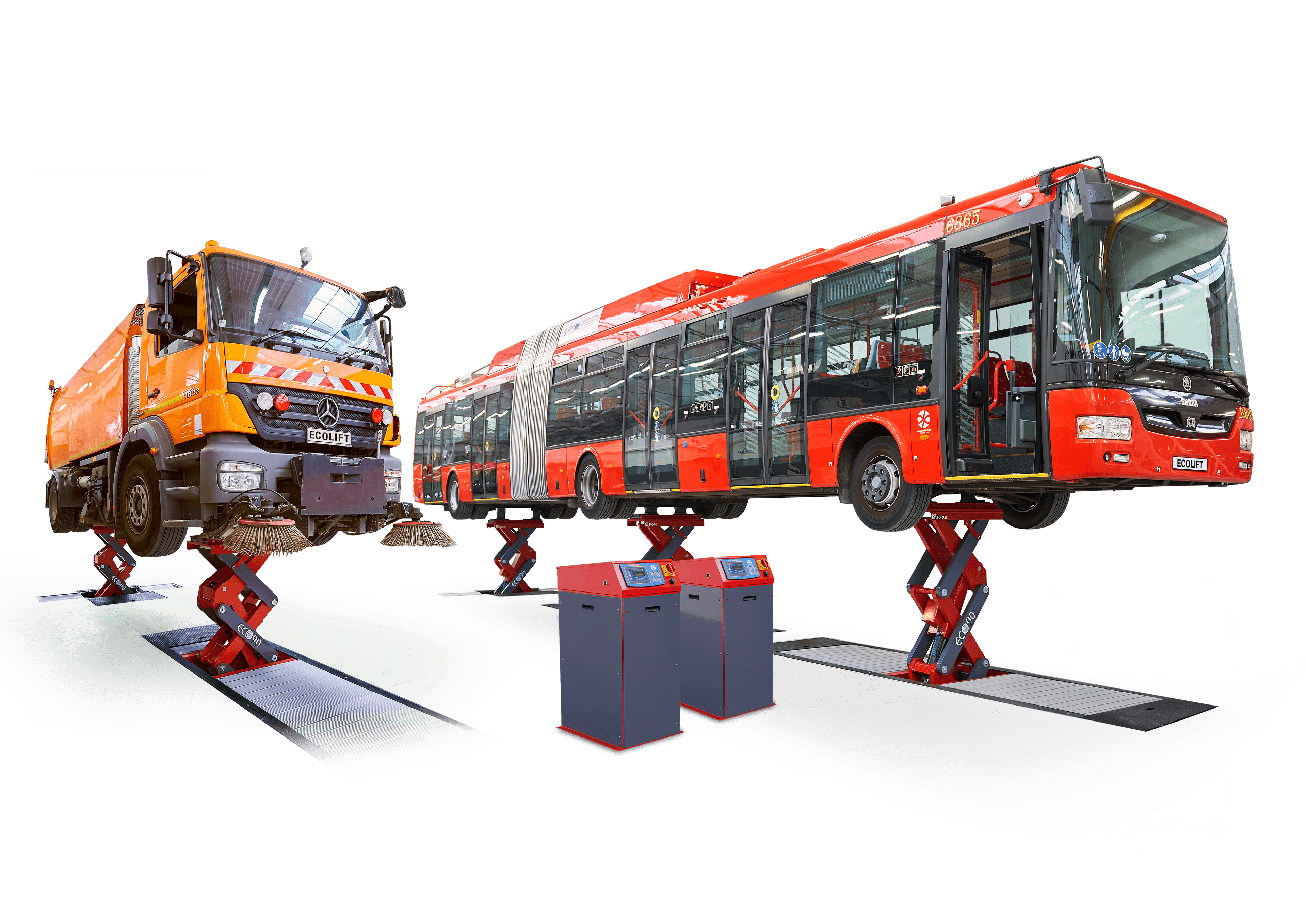

Multiple configurations
Available in 2-, 3- or 4-scissor configurations, with axle-engaging access to wheels, brakes and suspension.
In‑ground vehicle lifting up to 54,000 kg
In-ground Scissor ECOLIFT®
Overview
In-ground vehicle lift with the world's shallowest pit, designed to minimise pit construction costs. For various vehicle types and workshop situations.
Ideal for low-clearance vehicles
Space-saving, ultra-shallow pit construction
Pre-assembled cassettes
Fast lifting positioning
Relocatable in-ground lifting system

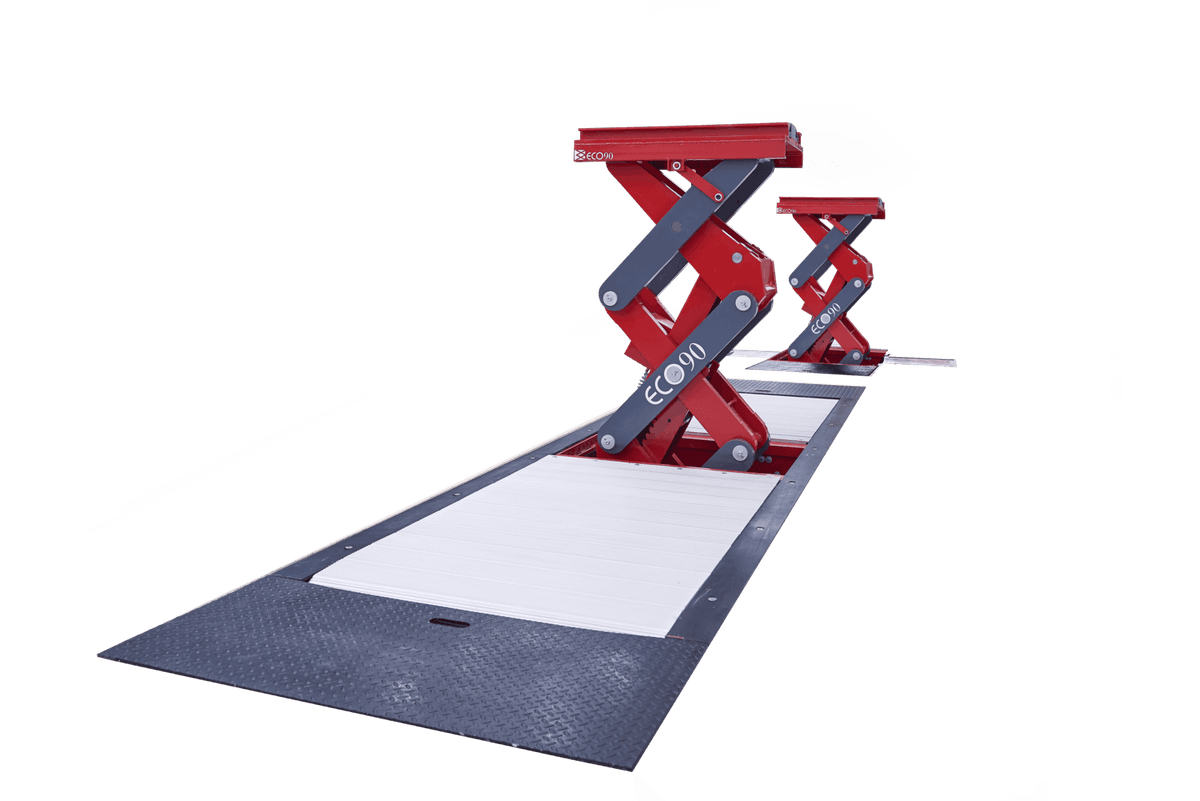

Wheel-free maintenance. Full-rise axle-engaging in-ground scissor lift with an accessible control console housing the power and operating unit.
Applications
Applications

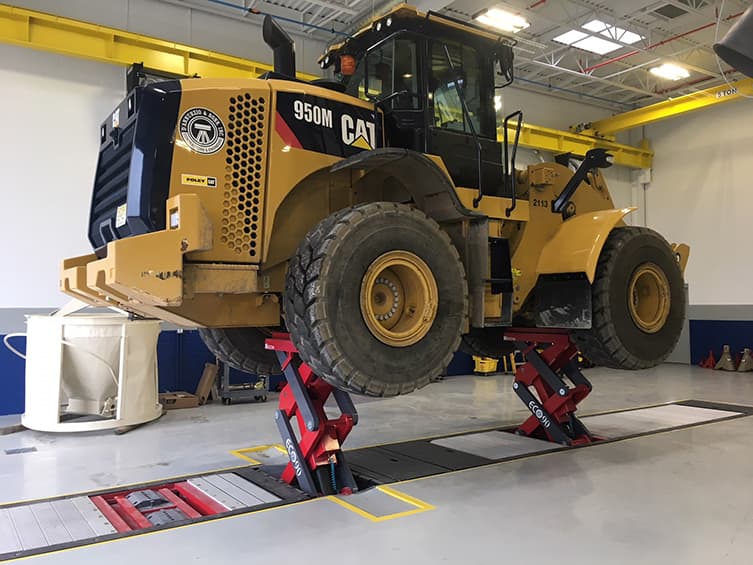

Construction Vehicles
Municipal service vehicles
Heavy duty trucks

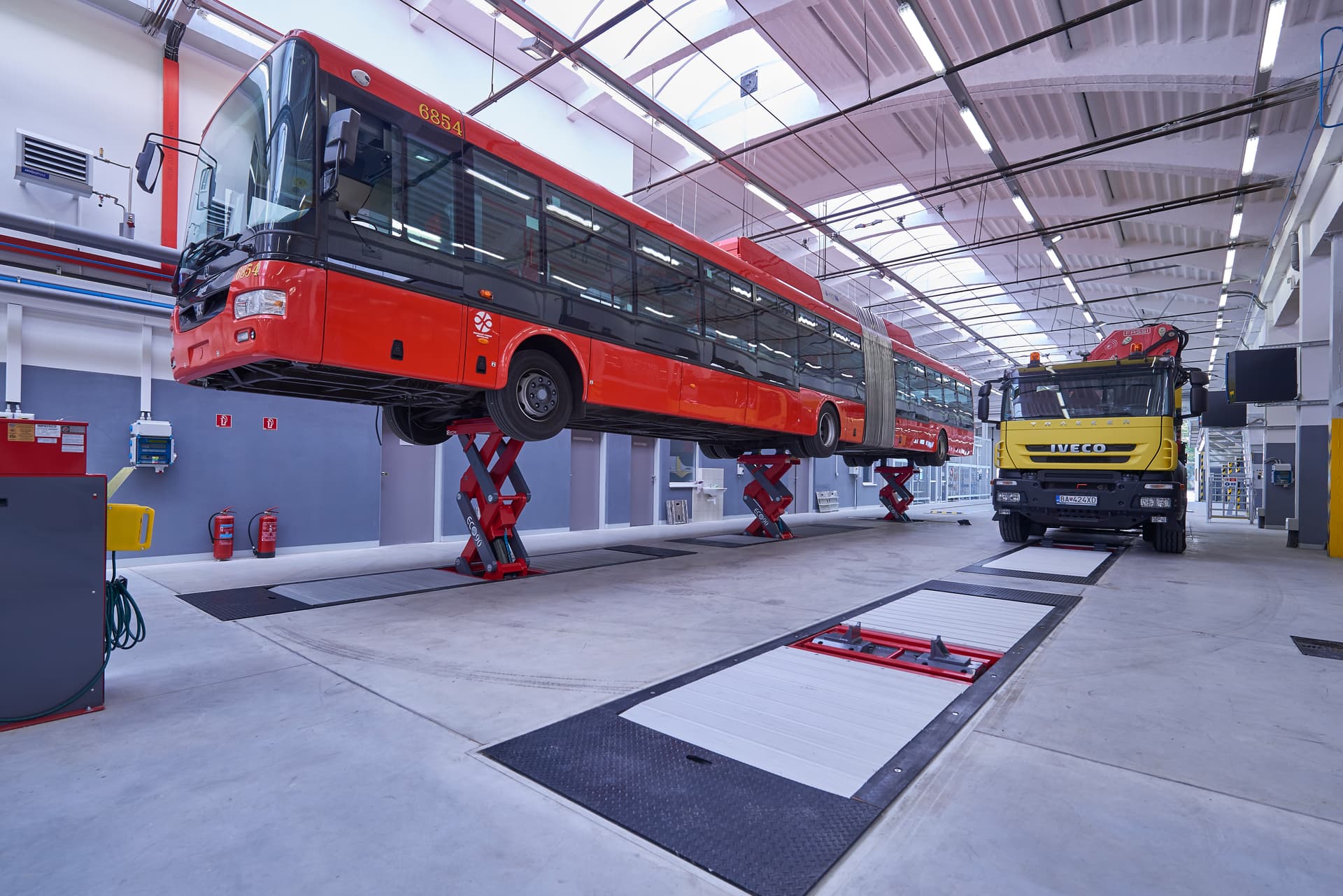

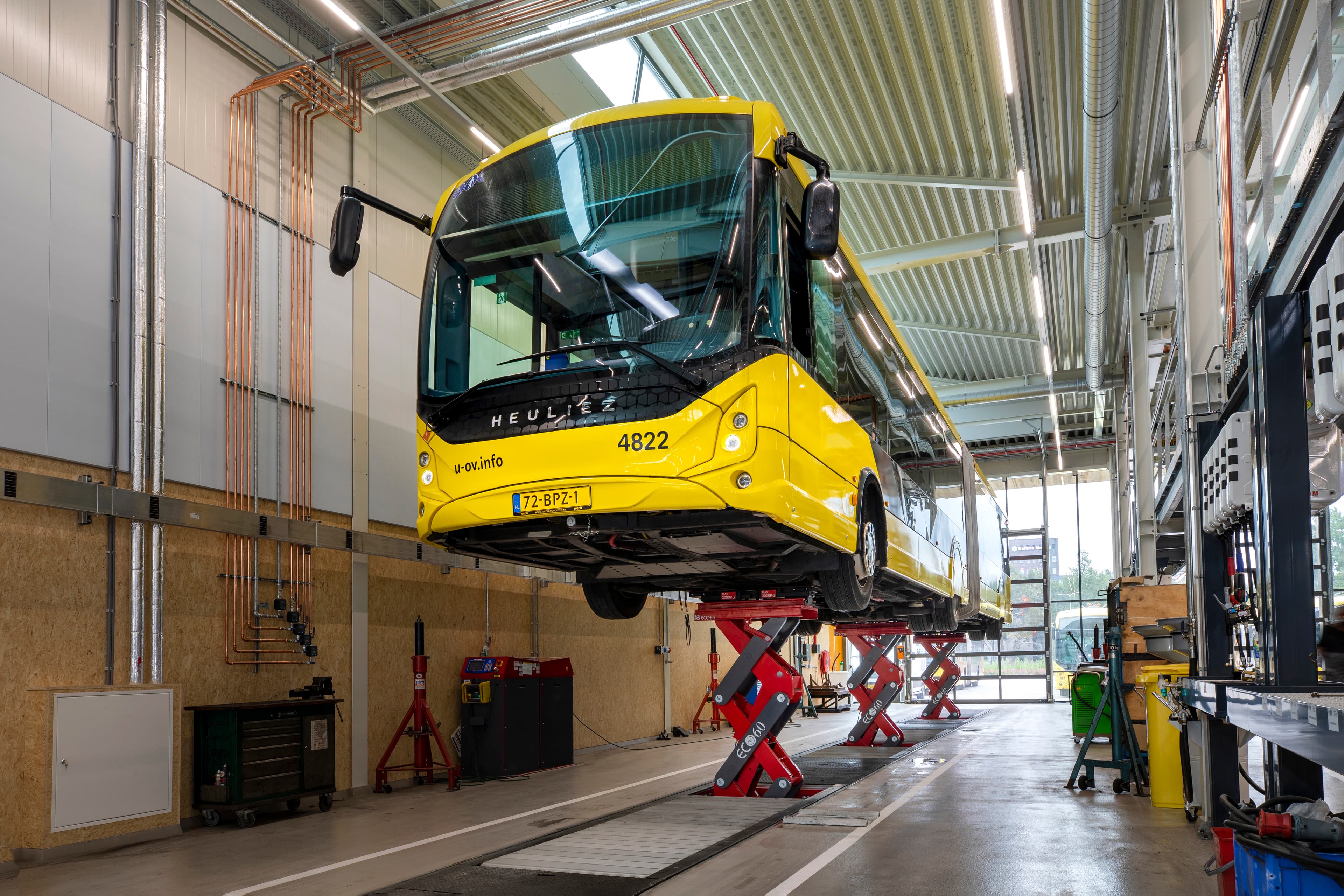

Public transport buses
Scissor in-ground vehicle lift fully flush with the workshop floor. Easy to relocate when your business moves.
54,000
kg
Max. lifting capacity
1,780
mm
Lifting height
90
sec
Lifting time
Product Features
Product Features

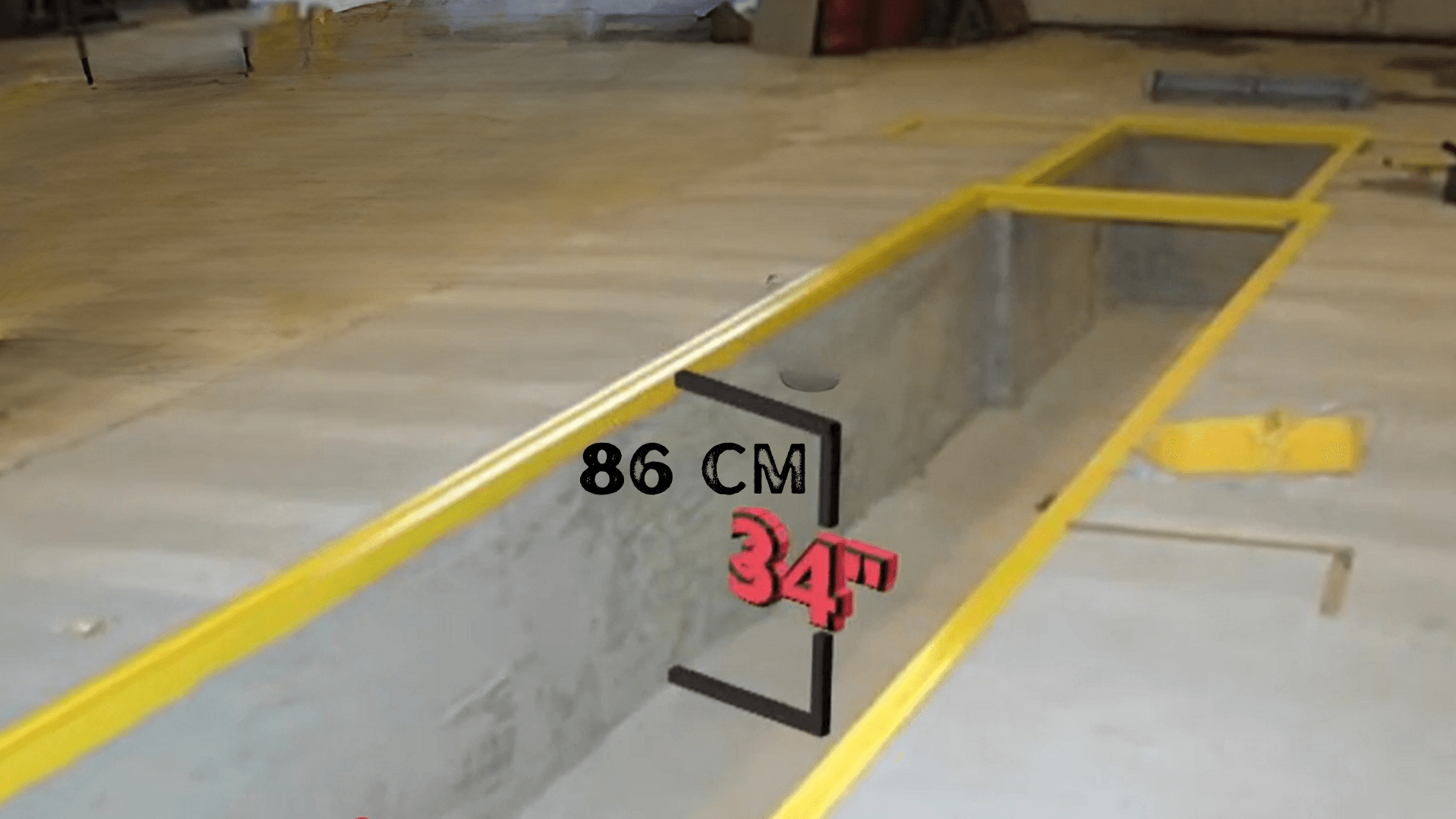

Ultra-shallow pit
Installation depth is just 860 mm. Ideal for high water table, bedrock or unstable soil conditions.
Ready to install
Standard fully galvanised, preassembled cassettes. Easy and quick for new and existing workshops.

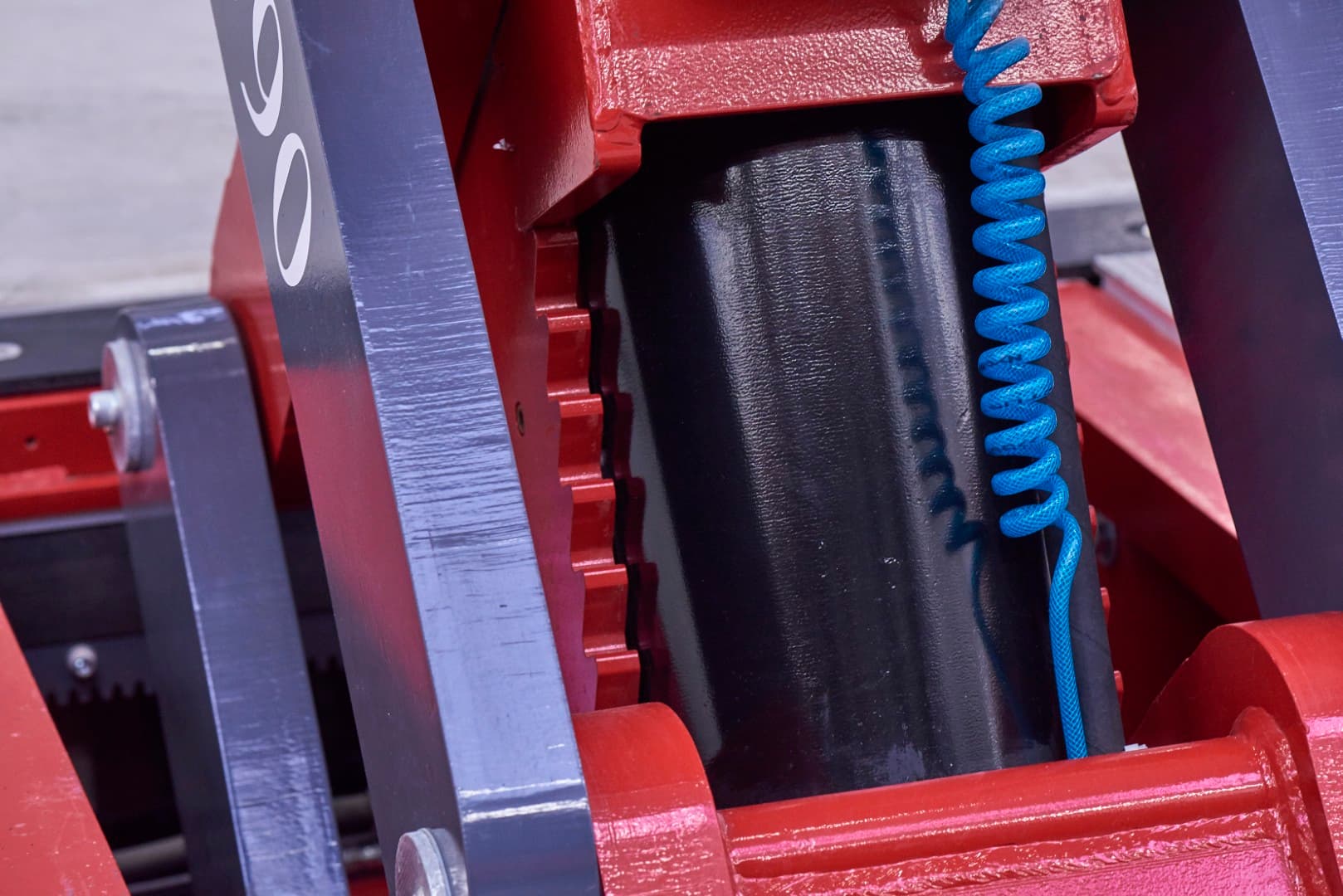

Active locking system
Robust mechanical always active locking system, independent of the hydraulic cylinder.
Optional Features
Optional Features
Continuous Recess®
For vehicles with extremely low ground clearances. The moveable lifting mechanism can recess below floor level anywhere within the travel range. Preventing damage to the undercarriage.
Automatic Wheel Base Positioning
Stores wheelbase data of an infinite number of vehicle configurations for easier lift setup. Allowing precise relocation of the moveable lifting units.
Remote Control
Wireless remote control. Operates in addition to standard controls on the console and is fully approved for use on the workshop floor
Adapter Range
Front and rear adapters optimised for both new vehicles with the latest axles as well as older vehicles.
Customer Story

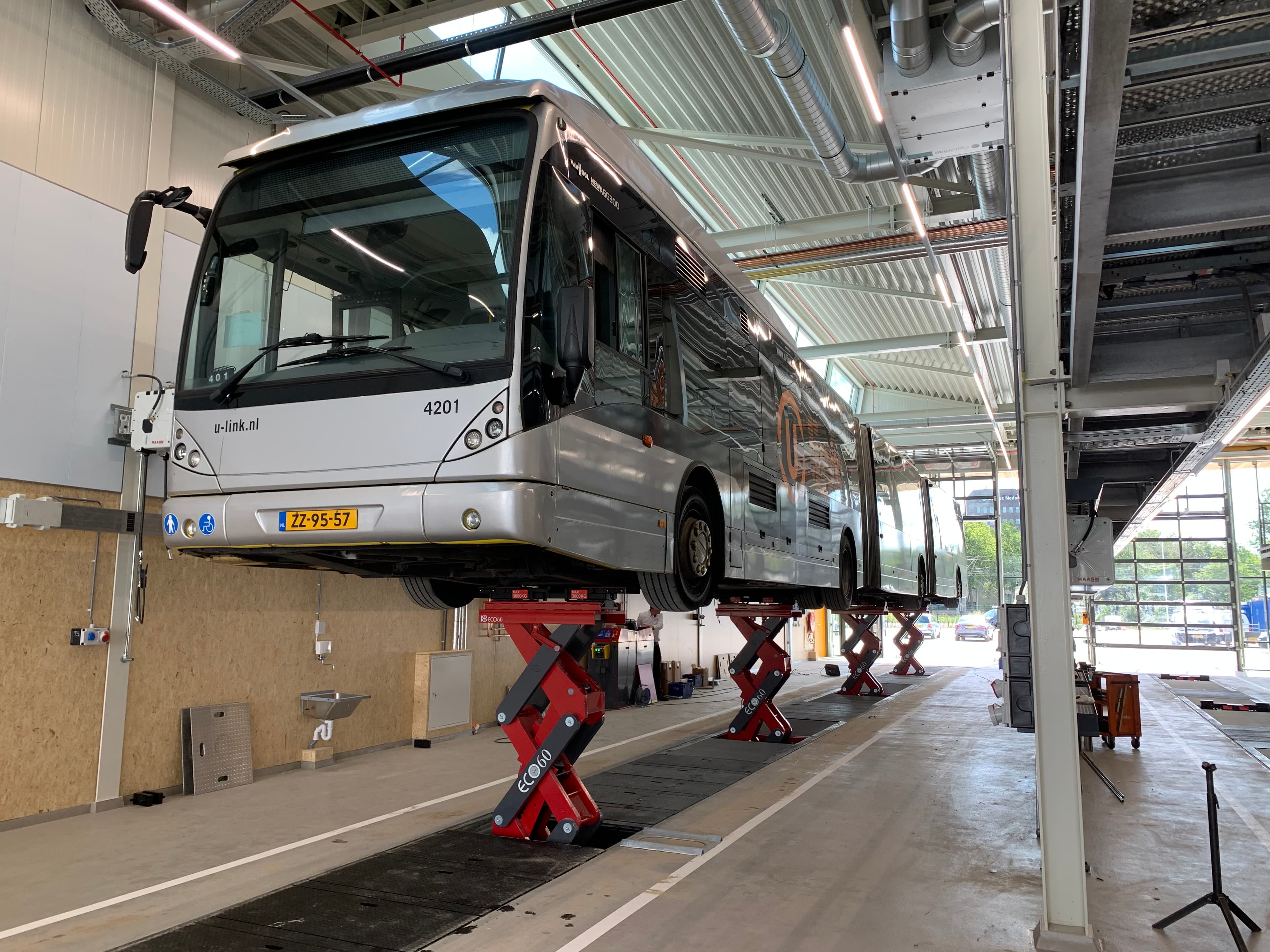

With public transport moving toward electrification, Qbuzz invested in three workshop stations fitted out with ECOLIFT's. These offer complete freedom of choice and the versatility to use the lifts individually or combined as one extra long lift.
Specifications
Specifications
ECO60
Lifting system
Hydraulic
Lifting capacity
27,000 kg
Lifting height
1,780 mm
Travel ranges movable scissor
3,000 - 4,000 - 5,200 mm
Minimum wheelbase
starting at 1220 mm
Lifting time
90 seconds
Motor power
2x 3.7 kW
ECO90
Lifting system
Hydraulic
Lifting capacity
40,500 kg
Lifting height
1,780 mm
Travel ranges movable scissor
3,000 - 4,000 - 5,200 mm
Minimum wheelbase
starting at 1220 mm
Lifting time
90 seconds
Motor power
3x 3.7 kW
ECO120
Lifting system
Hydraulic
Lifting capacity
54,000 kg
Lifting height
1,780 mm
Travel ranges movable scissor
3,000 - 4,000 - 5,200 mm
Minimum wheelbase
starting at 1220 mm
Lifting time
90 seconds
Motor power
4x 3.7 kW
Safety Features
Safety Features
The ECOLIFT meets all the industry standards. Designed with a mechanical locking system, independent from the hydraulics. This ensures full vehicle support during operation and safety when the system is not under pressure.
Independent mechanical locking system
All electrical components above floor level
No risk of unwanted lowering
Real-time synchronisation
Trusted by industry standards worldwide
