Mechanical safety
Independent mechanical locking system engages at 125 mm above floor level. Locking profile with locking increments of just 35 mm.
The green standard in mobile vehicle lifting
EARTHLIFT®
Overview
Designed for workshops that value performance and sustainability. The Earthlift mobile column vehicle lift combines advanced lifting technology with proven environmental benefits.
Regenerative batteries
Sustainable design with recyclable components and batteries
Up to 32 columns per set
RoHS compliant electronics
Clear touchscreen
For workshops investing in a green future. By switching to EARTHLIFT you can meet your CO₂ goals without compromising on efficiency. The result: faster workflow, safer lifts and a greener operation.
Applications
Applications

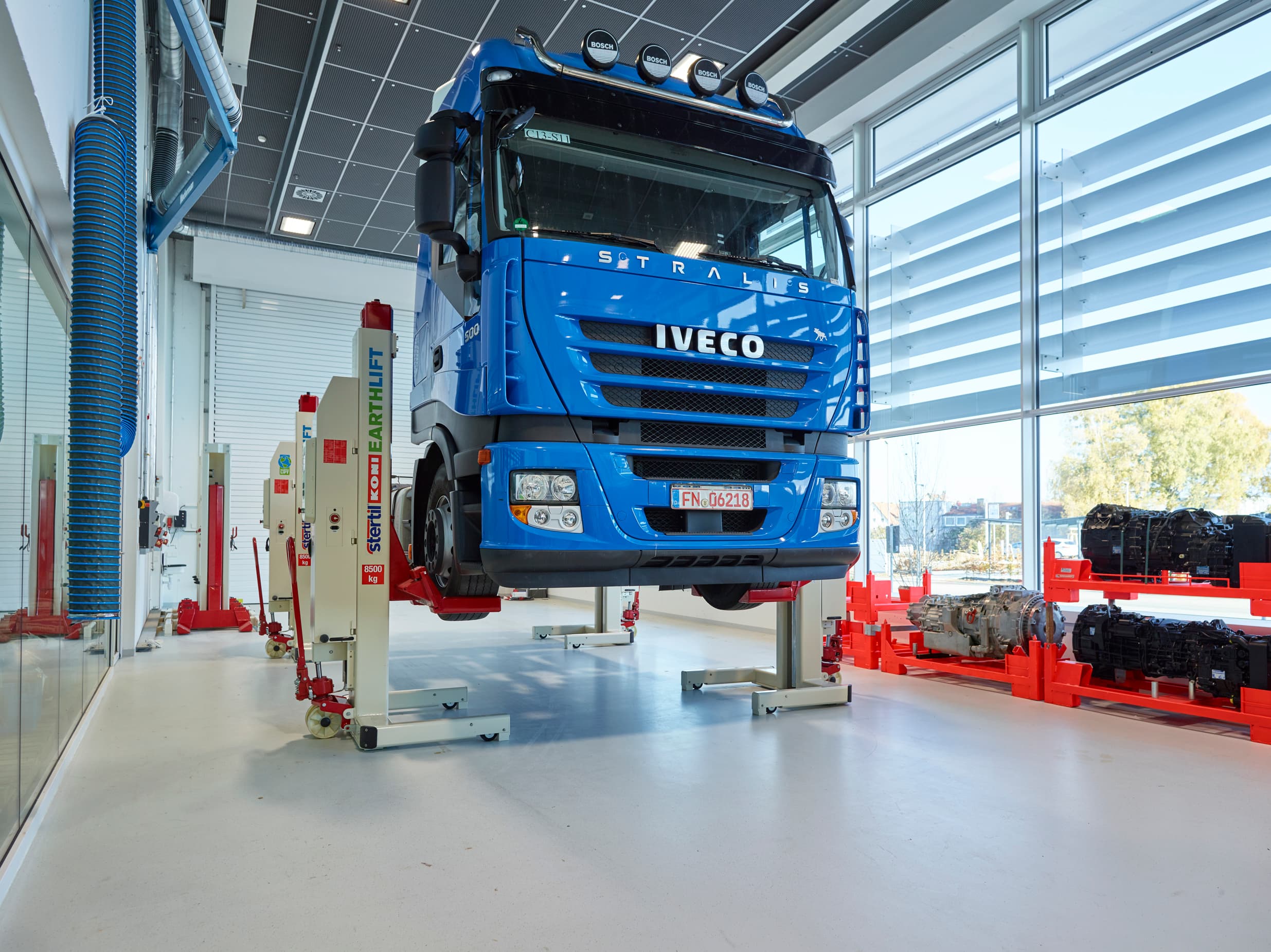

Commercial Vehicles
Trucks and truck-trailer combinations

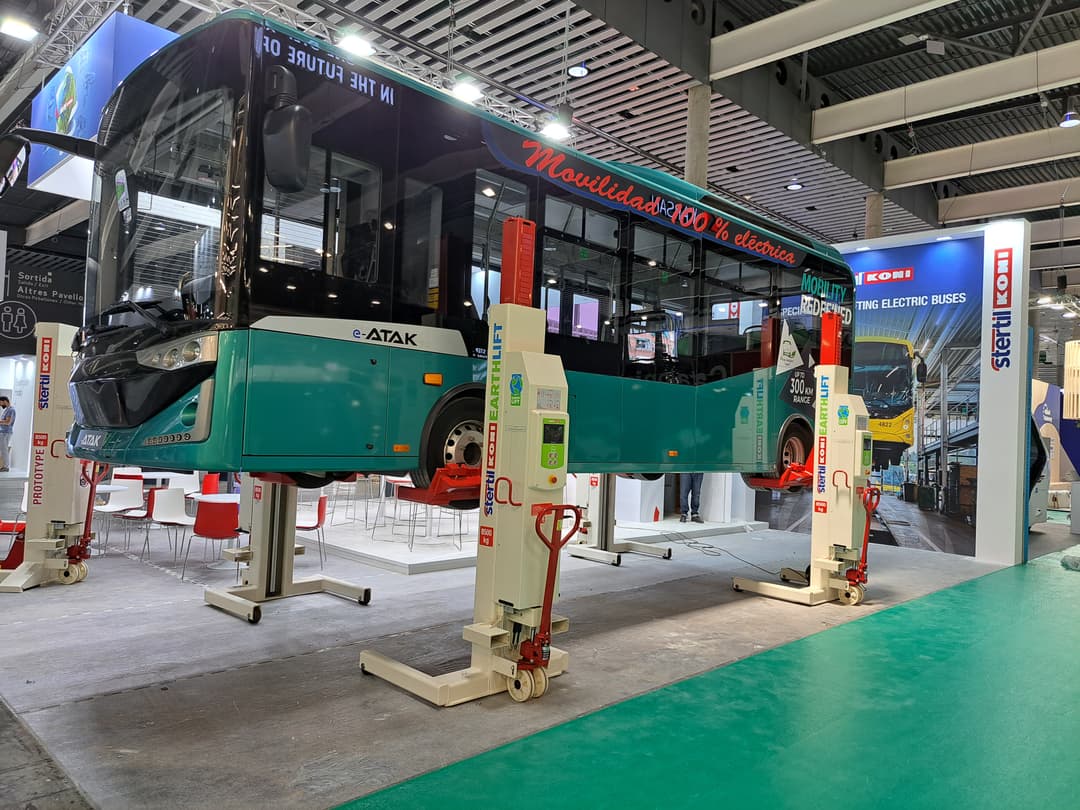

Public Transport
Transit buses, school buses, and other passenger vehicles
Defence & Military Vehicles
Armoured, tactical and support vehicles
Construction and Earthmoving
Machinery for construction, excavation and infrastructure works

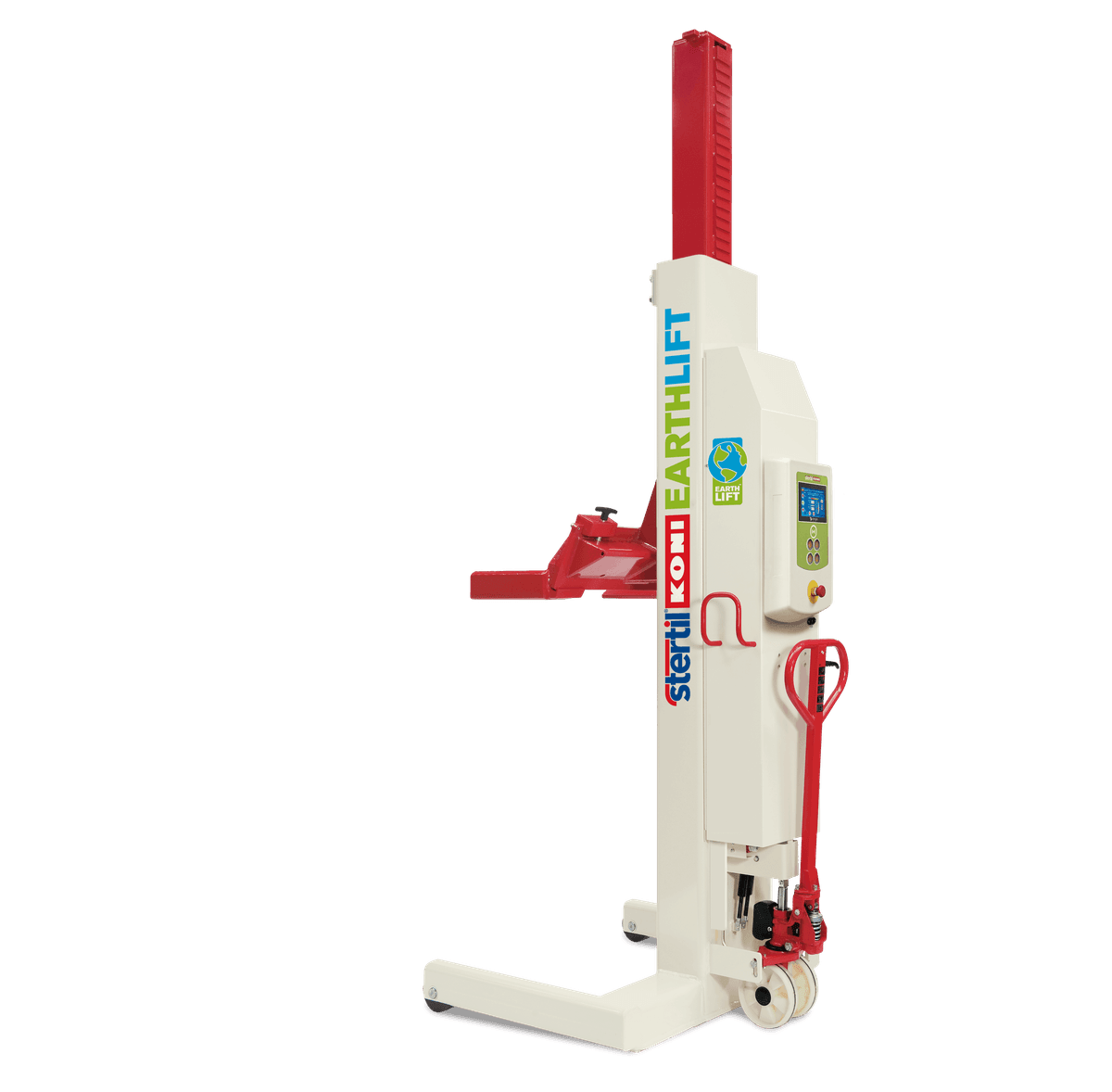

Stertil-Koni wireless regenerative mobile column lift for heavy duty vehicle lifting
Maximum lifting capacity per column
11,000
kg
Lifting capacity up to
Mechanic is able to stand upright
1,850
mm
Maximum lifting height
Quick setup and minimal downtime
94
seconds
Lifting time
Flexible number of columns
32
columns
Max. connected columns
Product Features
Product Features

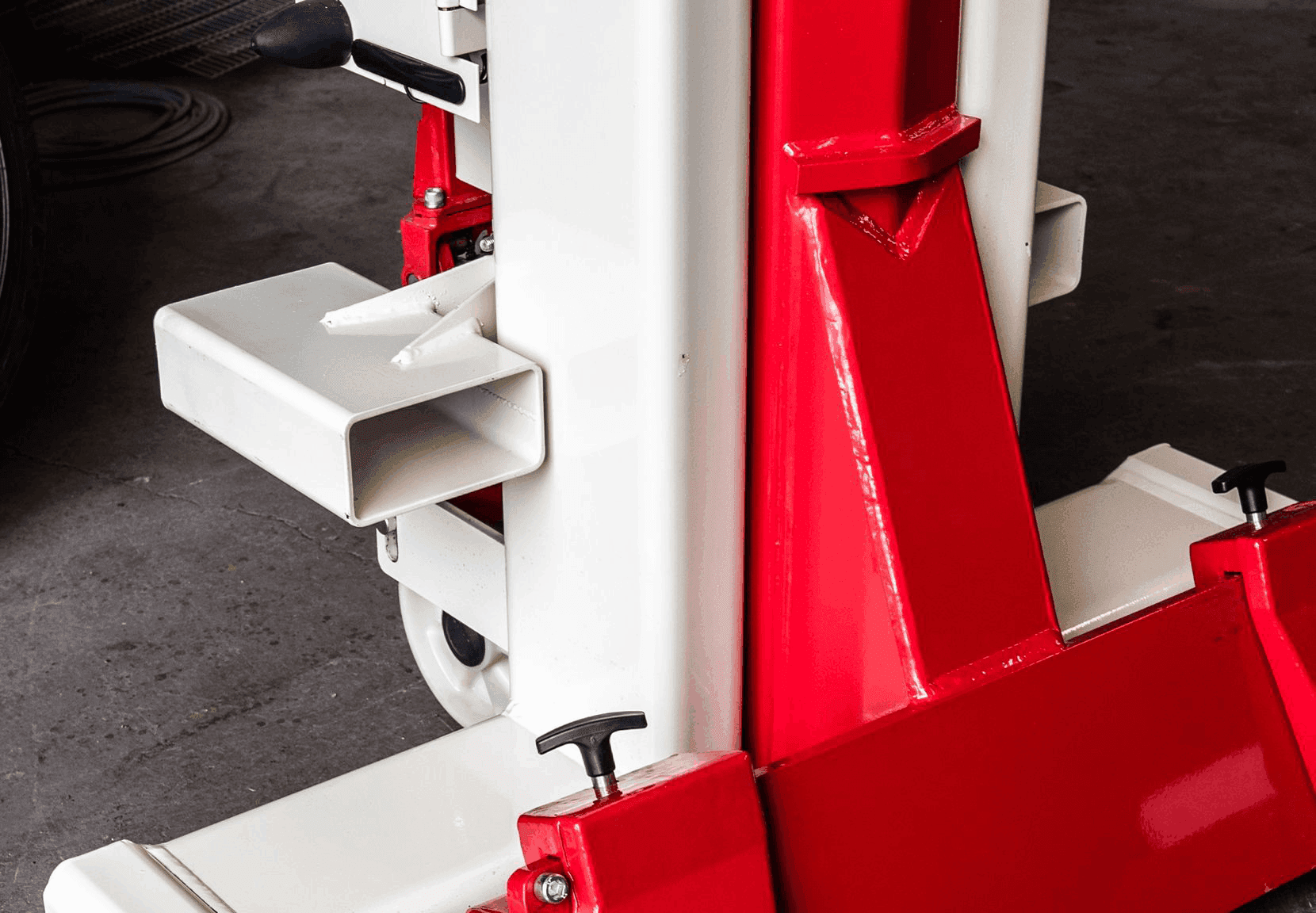

Adjustable pick-up forks
The width of the forks can be adjusted to the vehicle wheel even for super single tyres.
ID key access
Prevents unauthorised use and enables personalised settings for each user. Supports safe and efficient operation.

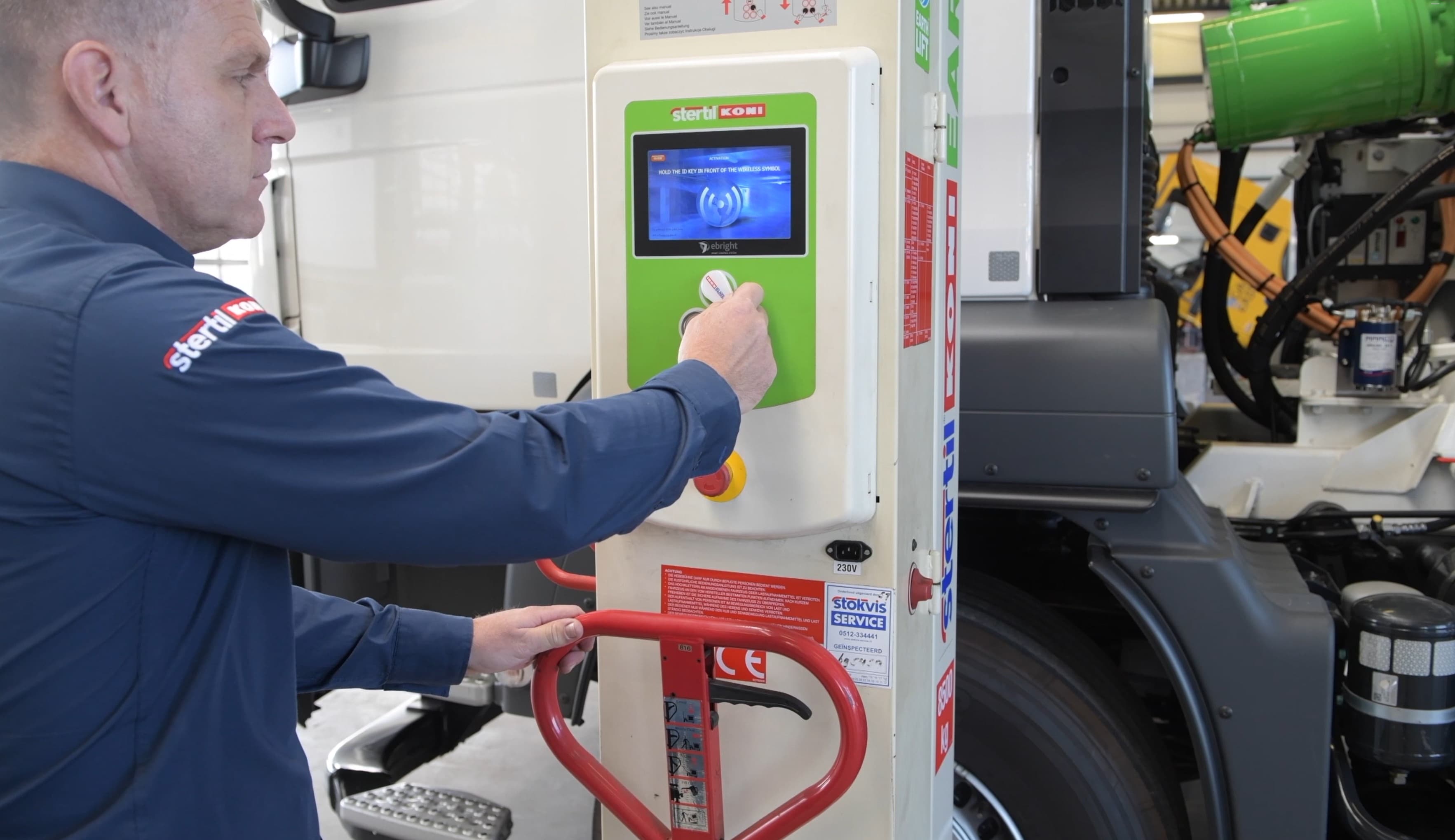

Touchscreen interface
Operators see lifting mode, height and load per column in real time. Ensures full control and fast diagnostics.
Optional Features
Optional Features
Retractable wheels for uneven floors
Ideal for workshops with floor irregularities. Easy to position, even with vehicles on soft tyres.
Custom configuration options
Adjust lift setup to your fleet and workflow. Designed to meet unique workshop requirements.
Forklift pockets
Pockets that can be mounted at the centre of gravity of the column allowing the column to be easily relocated with forklifts.

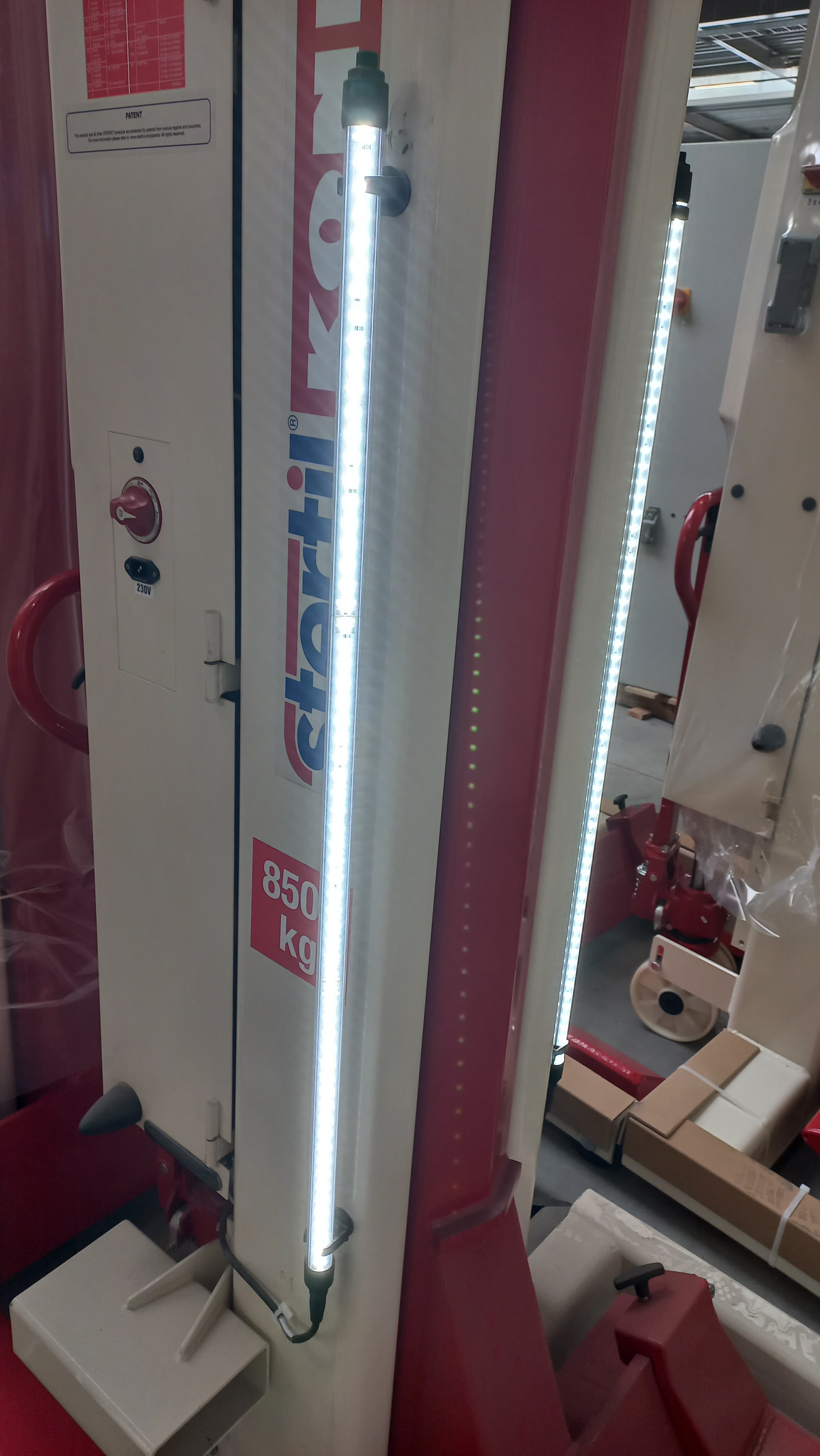

LED Lighting
Factory installation of two LED lights.
Forklift adapter set
For lifting 3 wheel and 4 wheel forklifts.
Multi-purpose adapters
Fork adapters allowing for the vehicle to be lifted at other pick-up points than at the wheels. Different models available.
Customer Story

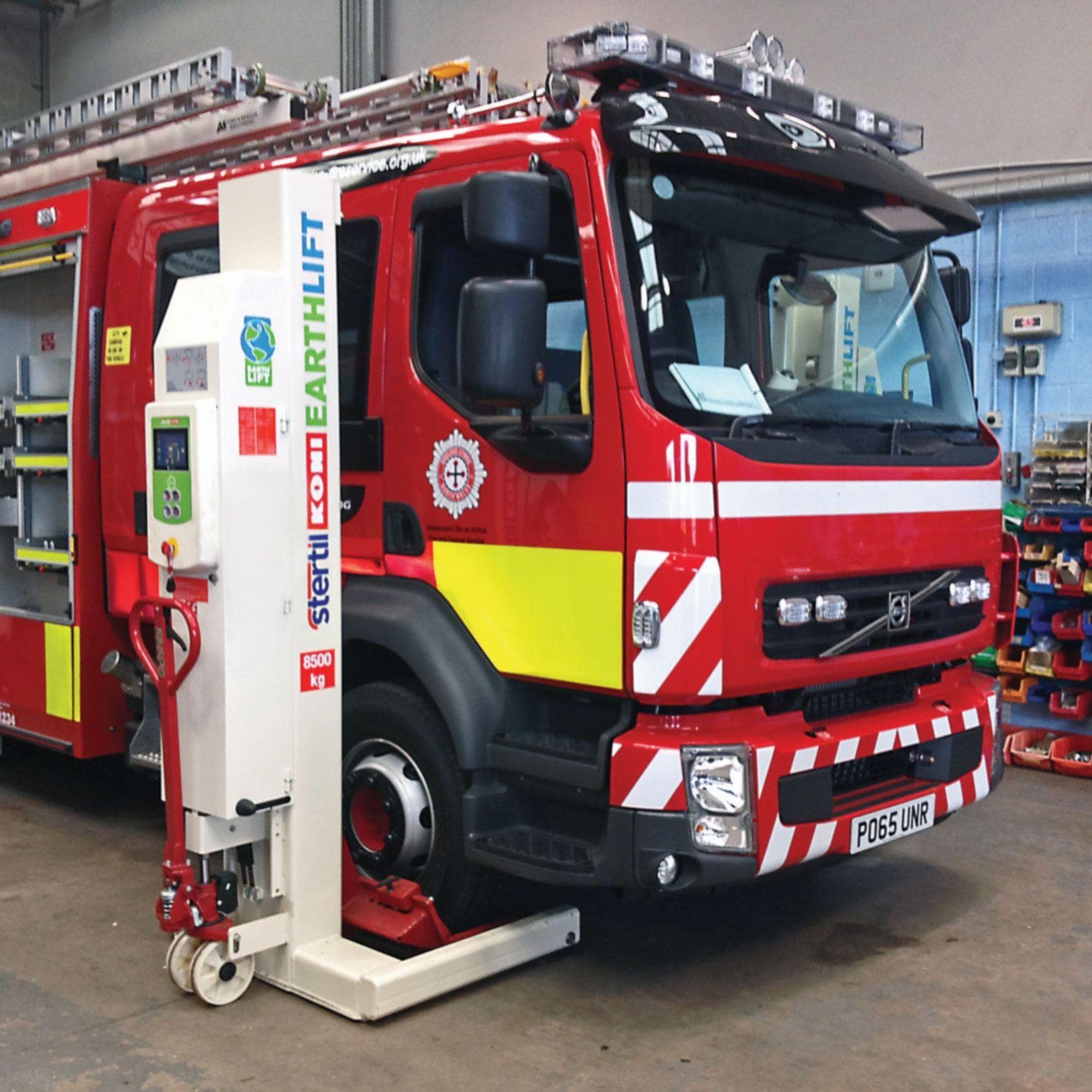

Dave Bond, Head of Fleet and Engineering: “The EARTHLIFT is extremely easy to use, versatile and reliable. Also, the efficiency of the Active Energy Retrieval System provides real energy savings which gives us a definite ‘thumbs up’ from our performance assessment colleagues."
Specifications
Specifications
Earthlift ST 1085
Lifting Capacity
8,500 kg
Lifting Height
Maximum 1,850 mm
Lifting time
94 seconds
Fork Type
Adjustable
Fork Length
350 mm
Fork Width
240 - 560 mm
Earthlift ST 1100
Lifting Capacity
10,000 kg
Lifting Height
Maximum 1,850 mm
Lifting time
94 seconds
Fork Type
Adjustable
Fork Length
300 mm
Fork Width
240 - 560 mm
Safety Features
Safety Features
All Stertil-Koni EARTHLIFT mobile columns are CE (Europe), UKCA (UK), ANSI/ALI-ALCTV (USA), and CSA (Canada) certified. Each lift includes automatic overload protection, and always active independent mechanical locking.
Independent mechanical gravity locking pawl
Locking system is always active
Automatic overload protection
Precision height synchronication between columns
Low voltage control panel
