Mechanical safety
Independent mechanical locking system engages at 125 mm above floor level. Locking profile with locking increments of just 35 mm.
Quick set-up and relocation

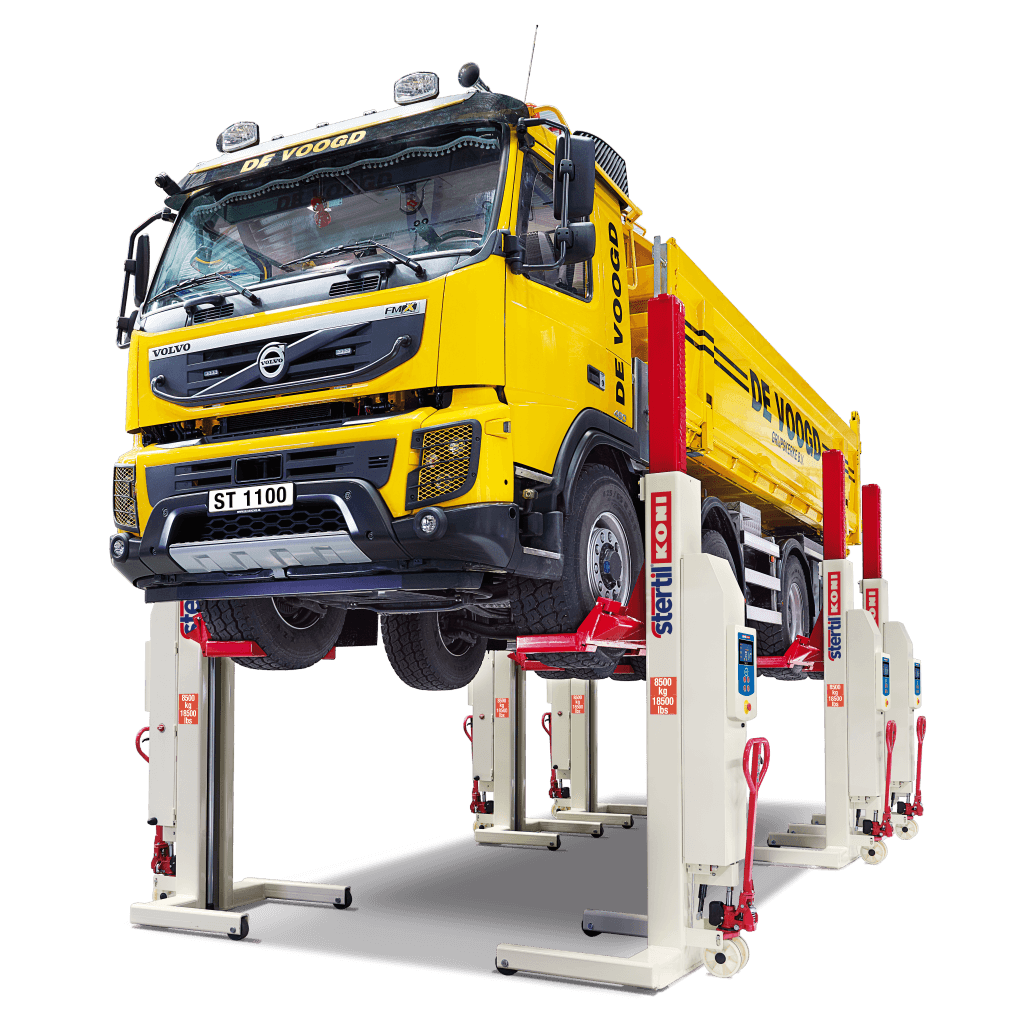

Mobile Column Vehicle Lifts
Overview
For all fleet workshop types. Wireless mobile column vehicle lifts give your workshop the flexibility to adapt.
Lifting capacity between 6,500 – 17,500 kg per column
Compatible with multi-axle and super single tyre vehicles.
Easy manoeuvrability and positioning
When not in use mobile columns can be put aside, freeing space on your workshop floor.
No pits or civil construction needed
Ideal for rental units and workshops with floor heating.
Gravity controlled safety mechanism
Mechanical locking system that engages using gravity—without relying on hydraulics, electricity or air pressure
Flexible number of columns from 2 to 32
Suitable for all vehicle types and fleet with high variety.
For growing fleets and fast turnaround workshop jobs, where mobility matters. User-ready safe control and certified according to industry standards. You can lift what you want, where you want, without installation.
Applications
Applications
Commercial Vehicles
Trucks and truck-trailer combinations
Public Transport
Transit buses, school buses, and other passenger vehicles
Agricultural Machinery
Tractors and agricultural equipment
Defence & Military Vehicles
Armoured, tactical and support vehicles
Ground Support Equipment
Aircraft handling equipment, and GSE vehicles and equipment
Construction and Earthmoving
Machinery for construction, excavation and infrastructure works

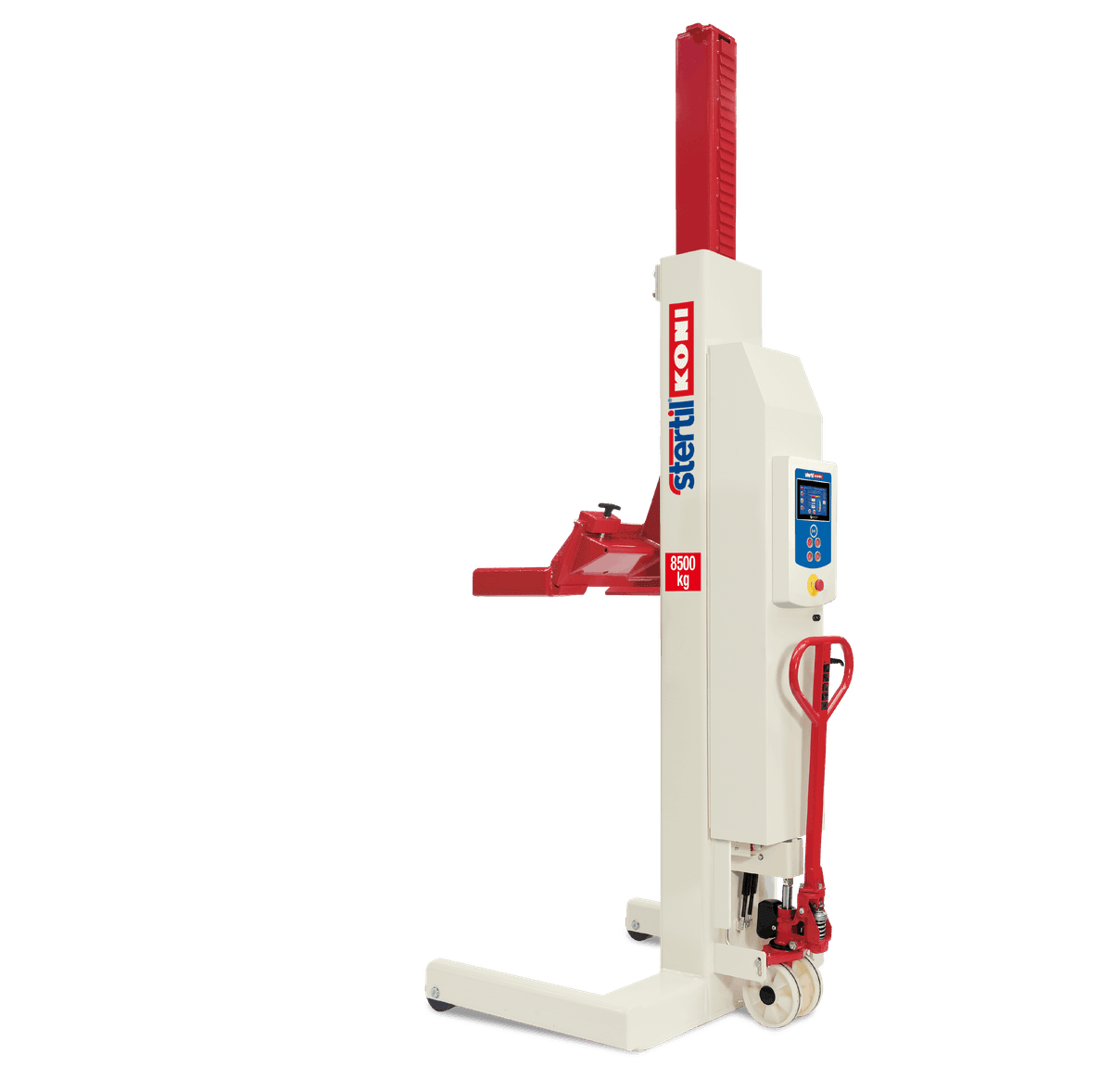

Stertil-Koni wireless mobile columns, built for heavy duty vehicle lifting
Maximum lifting capacity per column
17,500
kg
Lifting capacity up to
Mechanic is able to stand upright
2,060
mm
Lifting height up to
Quick setup with minimal downtime
75
sec
Lifting time
Flexible number of columns
32
columns
Max. connected columns
Product Features
Product Features
Wireless mesh network
Wireless or cabled options with up to 32 columns in one synchronised configuration.
Adjustable pick-up forks
The width of the forks can be adjusted to the vehicle wheel even for super single tyres.
ebright Smart Control System
Full colour intuitive 7” touchscreen. Reliable wireless network with single or multi-master configuration.
Lifting speed
Fast lifting: between 75-215 seconds depending on model.
Optional Features
Optional Features
Retractable wheels
Retractable wheels prevents high point floor pressure.
Regenerative battery
The EARTHLIFT® model is equipped with regenerative batteries. Batteries are recharged when the lift is lowered, leading to 35% more efficient lifting.
Forklift pockets
Pockets that can be mounted at the centre of gravity of the column allowing the column to be easily relocated with forklifts.
LED Lighting
Factory installation of two LED lights.
Forklift adapter set
For lifting 3-wheel and 4-wheel forklifts.
Multi-purpose adapters
Fork adapters allowing for the vehicle to be lifted at other pick-up points than at the wheels. Different models available.

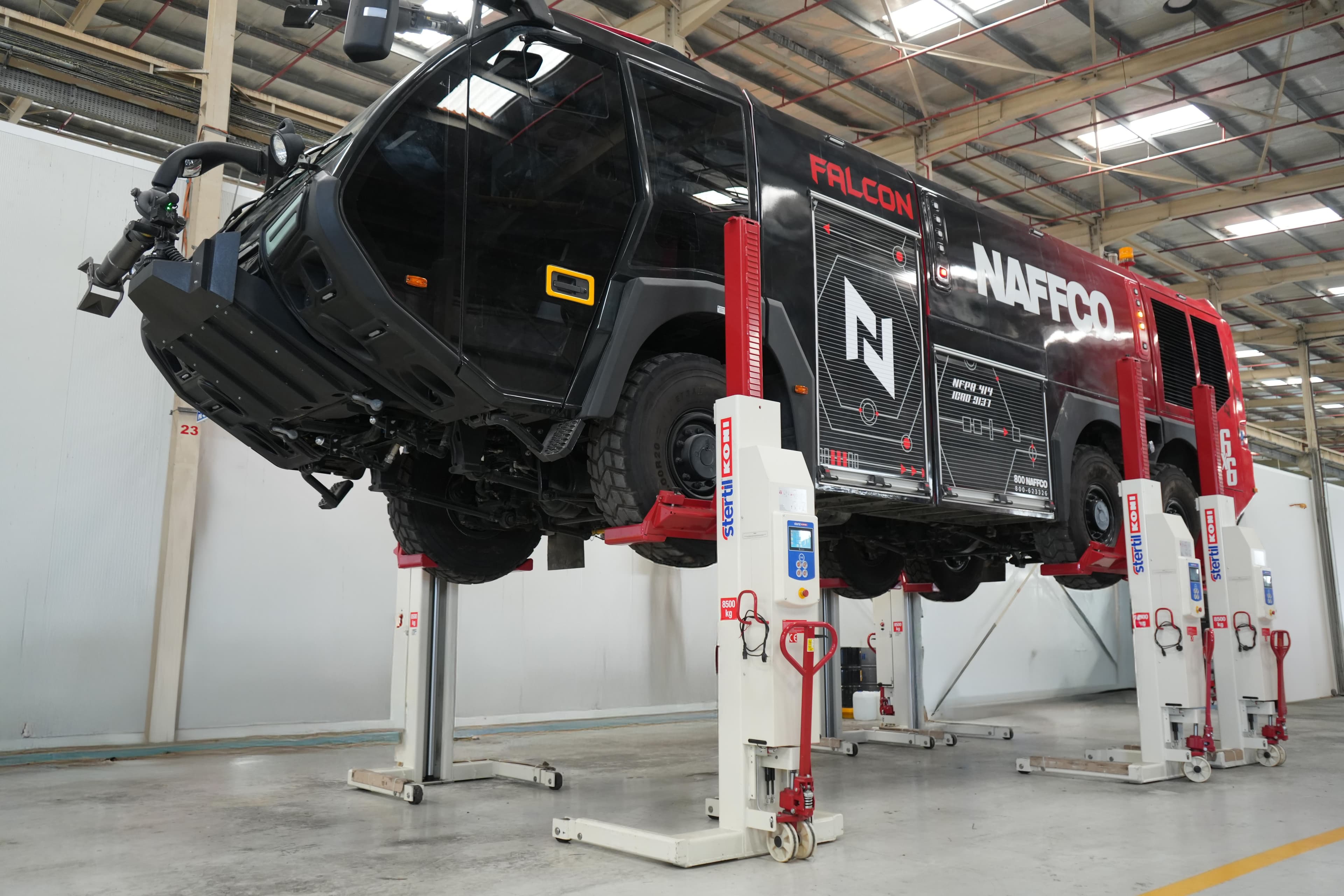

Customer Story
"NAFFCO is renowned for life safety solutions, while Stertil-Koni excels in heavy duty lifting equipment. Both prioritise quality and reliability to ensure safety and protect people, property, and equipment.”
Specifications
Specifications
ST 1065
Lifting Capacity (kg)
6,500
Fork Type
Fixed
Fork Length (mm)
500
Fork Width (mm)
770
ST 1075
Lifting Capacity (kg)
7,500
Fork Type
Adjustable
Fork Length (mm)
350
Fork Width (mm)
240 - 560
BROCHURE
ST 1085
Lifting Capacity (kg)
8,500
Fork Type
Adjustable
Fork Length (mm)
350
Fork Width (mm)
240 - 560
BROCHURE
ST 1100
Lifting Capacity (kg)
10,000
Fork Type
Adjustable
Fork Length (mm)
300
Fork Width (mm)
240 - 560
BROCHURE
ST 1130
Lifting Capacity (kg)
13,000
Fork Type
Fixed
Fork Length (mm)
640
Fork Width (mm)
1006
BROCHURE
ST 1175
Lifting Capacity (kg)
17,500
Fork Type
Fixed
Fork Length (mm)
450
Fork Width (mm)
806
BROCHURE
Safety Features
TEST
Safety Features
All Stertil-Koni mobile column vehicle lifts are CE (Europe), UKCA (UK), ANSI/ALI-ALCTV (USA), and CSA (Canada) certified. Each lift includes automatic overload protection, and always active independent mechanical locking.
Independent mechanical gravity locking pawl
Locking system is always active
Automatic overload protection
Precision height synchronisation between columns
Low voltage control panel
Trusted by industry standards worldwide
