Wheel-Free, Spacious Vehicle Maintenance

Piston DIAMONDLIFT

The Stertil-Koni DIAMONDLIFT telescopic piston lifts sets a new industry standard for in-ground lifts. The DIAMONDLIFT gives you the choice in a variety of workshop situations. Whether you are building a new workshop; want to renovate or have difficult building conditions, there is a  Stertil-Koni in-ground DIAMONDLIFT which can be configured specifically for your circumstances.

Download brochure
  • Versatile & Space-Saving
  • Maximum Innovative Industry Safety
  • User & Environmentally Friendly
  • Wide Range of Applications
  • Life Long Low Maintenance
  • Minimum Biodegradable Oil Usage

Operational Features

Specifications

ModelDIAMOND 64/2-PistonDIAMOND 70/2-PistonDIAMOND 96/3-PistonDIAMOND 105/3-PistonDIAMOND 128/4-PistonDIAMOND 140/4-Piston
Lifting Capacity30,000 kg32,000 kg45,000 kg48,000 kg60,000 kg64,000 kg
Lifting Height1,850 mm1,850 mm1,850 mm1,850 mm1,850 mm1,850 mm
Lifting Time90 seconds90 seconds90 seconds90 seconds90 seconds90 seconds
Compressed Air Supply140 LPM at 6.2 bar140 LPM at 6.2 bar140 LPM at 6.2 bar140 LPM at 6.2 bar140 LPM at 6.2 bar140 LPM at 6.2 bar
Electrical Supply208-230/460/575 volt208-230/460/575 volt208-230/460/575 volt208-230/460/575 volt208-230/460/575 volt208-230/460/575 volt
Lifting Capacity30,000 kgLifting Height1,850 mmLifting Time90 secondsCompressed Air Supply140 LPM at 6.2 barElectrical Supply208-230/460/575 volt
Lifting Capacity32,000 kgLifting Height1,850 mmLifting Time90 secondsCompressed Air Supply140 LPM at 6.2 barElectrical Supply208-230/460/575 volt
Lifting Capacity45,000 kgLifting Height1,850 mmLifting Time90 secondsCompressed Air Supply140 LPM at 6.2 barElectric Supply208-230/460/575 volt
Lifting Capacity48,000 kgLifting Height1,850 mmLifting Time90 secondsCompressed Air Supply140 LPM at 6.2 barElectric Supply208-230/460/575 volt
Lifting Capacity60,000 kgLifting Height1,850 mmLifting Time90 secondsCompressed Air Supply140 LPM at 6.2 barElectric Supply208-230/460/575 volt
Lifting Capacity64,000 kgLifting Height1,850 mmLifting Time90 secondsCompressed Air Supply140 LPM at 6.2 barElectric Supply208-230/460/575 volt

Highest Level of Safety

The Stertil-Koni In-Ground DIAMONDLIFT is safe, user-friendly, reliable and environmental in-ground piston lift on the market today. Like real diamonds, the Stertil-Koni DIAMONDLIFT is virtually indestructible.

With the highest level of safety and accredited third party testing and validation by ALI/ETL-Intertek resulting in a superior innovative lifting solution.

In-ground Stertil-Koni piston vehicle lift Diamondlift with tractor

For every need a solution

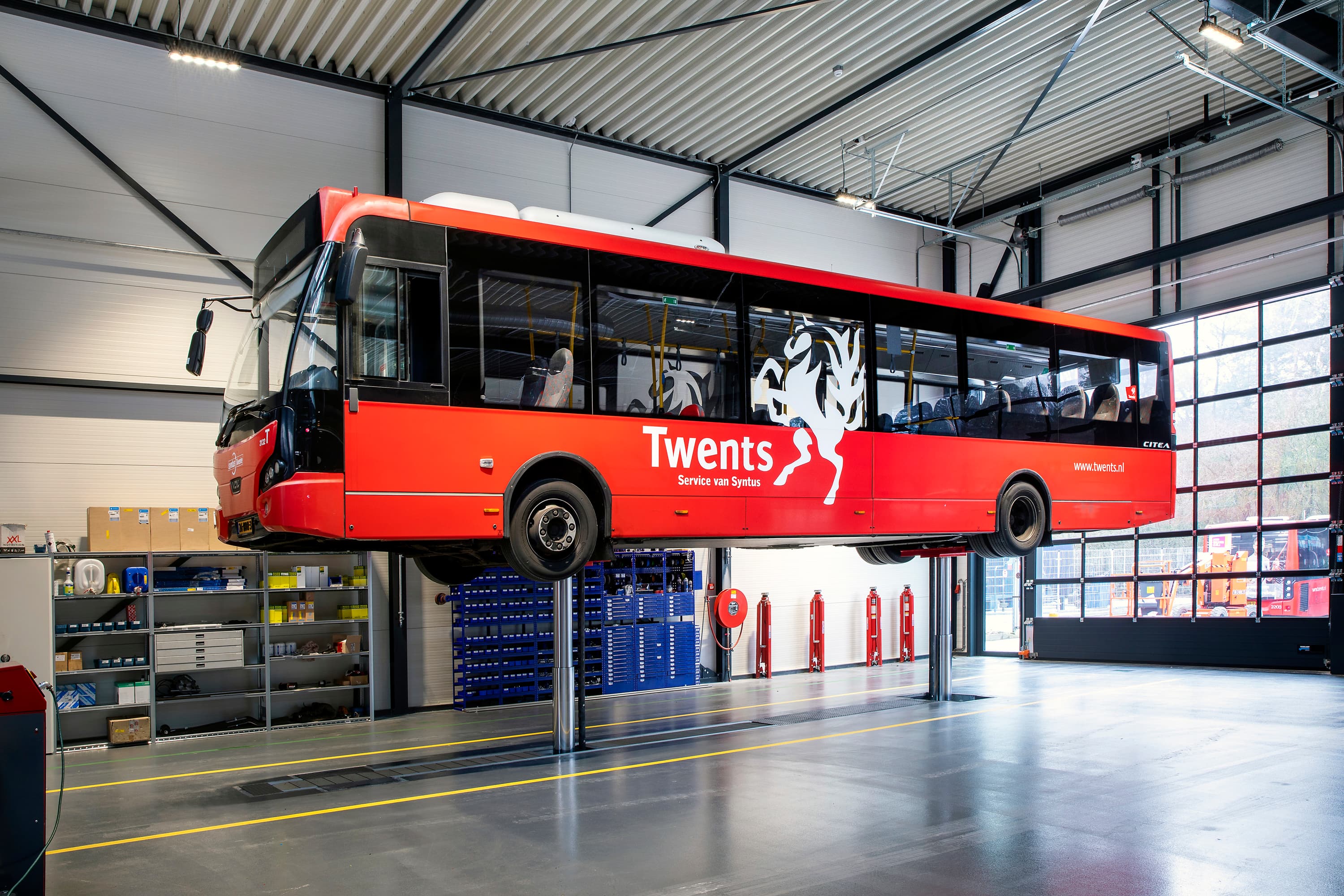

The DIAMONDLIFT is Stertil-Koni's state-of-the-art high pressure telescopic piston lift. Optimum flexibility, productivity, durability and safe for the environment. The DIAMONDLIFT  is available in a variety of configurations with 2,3 or 4 piston configurations and two installation models: The DIAMONDLIFT Cassette and the DIAMONDLIFT Frame.

Both models are available in either a two, three or four piston configuration, with a total lifting capacity of 30,000 kg up to 64,000 kg respectively. The lifting capacity of 15,000 kg or 16,000 per piston, makes the DIAMONDLIFT extremely versatile.

Cassette Version

The Stertil-Koni DIAMONDLIFT with the pre-fabricated cassette frame with DIAMOND GUARD barrier coating protects the lift from electrolysis and corrosion and protects the lift against workshop fluids.Travel ranges available from 3,000 mm, 4,000 mm, or 5,200 mm.

Frame Version

The DIAMONDLIFT frame version is installed in a concrete pit and has multiple travel ranges due the modular configuration of the frames. Available with either aluminium rolling covers or steel cover sliding plates.

  • Cassette Version
  • Frame Version

Easy to use and maintain

The revolutionary ebright Smart Control System combines intuitive ease of use with maximum visual information about the lifting process.

The gravity engaged locking system enables easy service and can be accessed from floor level. All control components and power units are located in the above-ground console to allow easy access for convenient maintenance.

  • The optional Automatic Wheel Base Positioning (AWBP) system for the moveable lifting unit, allows for pre-set programming of an endless number of vehicles which can be saved and activated.
  • Easy access for manual lowering (e.g. if there is a power outage)
  • Moveable piston assembly and cover system is horizontally positioned utilising an inverted rack and pinion design hydraulically-driven

Highly Durable Pistons

  • Hard chrome-plated piston construction very durable with long life span
  • By design, all critical seals are inside the telescopic cylinder, therefore protecting them from any potential damage caused by dirt or debris
  • High load bearing hard chrome piston rods with corrosion protection
  • All of the bolts are anti-corrosion coated and bonded and sealed with a protection layer

Standard or Continuous Recess®

There is a choice between a Standard or a Continuous Recess® version.  The Standard DIAMONDLIFT has 1 or 2 pockets. Ideal for vehicles with less extensive undercarriages.

The Continuous Recess version with a broad base frame or cassette is recommended for vehicles with low ground clearance, for example city transit and articulated buses preventing damage to the undercarriage of the vehicle. The movable pistons can recess below floor level anywhere within the travel range.



Sliders, Not rollers

Instead of utilising traditional rollers which may cause a high point load, the DIAMONDLIFT moveable lifting unit(s) with the aluminium trench-covering system travel on UHMW (Ultra High Molecular Weight) polyethylene slides atop a stainless steel guide which are extremely tough and durable thus maintenance-free.



Superior and Environment Friendly

  • The top part of the DIAMONDLIFT is completely hotgalvanised
  • DiamondGuard® is a high-quality coating that protects the cassettes from electrolysis and corrosion aswell as hazardous workshop fluids and prevents soil contamination
  • DIAMONDLIFT high pressure hydraulics, only require 18 liters of biodegradable oil per piston
  • All hydraulics components are above the ground so in the event of leakage no contamination to the ground

Maximum Innovative Industry Safety

The Stertil-Koni DIAMONDLIFT is the safest in-ground piston lift available for workshops. The standard gravity engaged locking has increments of 75 mm with 21 locking positions starting from 220 mm at floor level, which makes the in-ground lift ideal for tyre workshops.

The locking system can be used as a parking system. When you lower the lift in the locks it fully carries the vehicle, the pistons are free of pressure and therefore no risk of unexpected lowering. Additional safety features:

  • Ultrasonic sensors provide real-time synchronisation
  • Integrated cover systems
  • Programmable lifting height
  • No high-power electric components in the pit
  • Audio and visual safety features
  • Optional detachable wired remote control

Strong practical rolling covers that simply work

The rolling covers of the moveable piston, for both DIAMONDLIFT versions are especially designed and made of anodized aluminium with a skid-resistant surface. DIAMONDLIFT rolling covers are capable of handling a wheel load of 6,000 kg as well as a point load of up to 3,400 kg on a 5 cm x 5 cm contact area, perfect when using either axle stands or transmission jacks.

  • Continuous hinge with no moving parts
  • Covers are flush to the finished floor at all times, no tripping hazard
  • Moveable piston assembly and cover system is horizontally positioned utilizing an inverted rack and pinion design hydraulically-driven
  • The hydraulic drive system is self-aligning and self-cleaning

Wide range of Applications

The available horizontal travel ranges of the moveable pistons for the DIAMONDLIFT allow a variety of different commercial vehicles to be lifted.



DIAMONDLIFT 3 piston configuration
